Dismantling, Packaging and Loading of a FRECH W 500 Die Casting Machine Including Automation
FISS dismantled a modern FRECH W 500 die casting machine manufactured in 2020, including the complete automation equipment, packaged all components safely for transport and organised loading for shipment to the customer in France.
Which die casting cell was dismantled for transport to France?

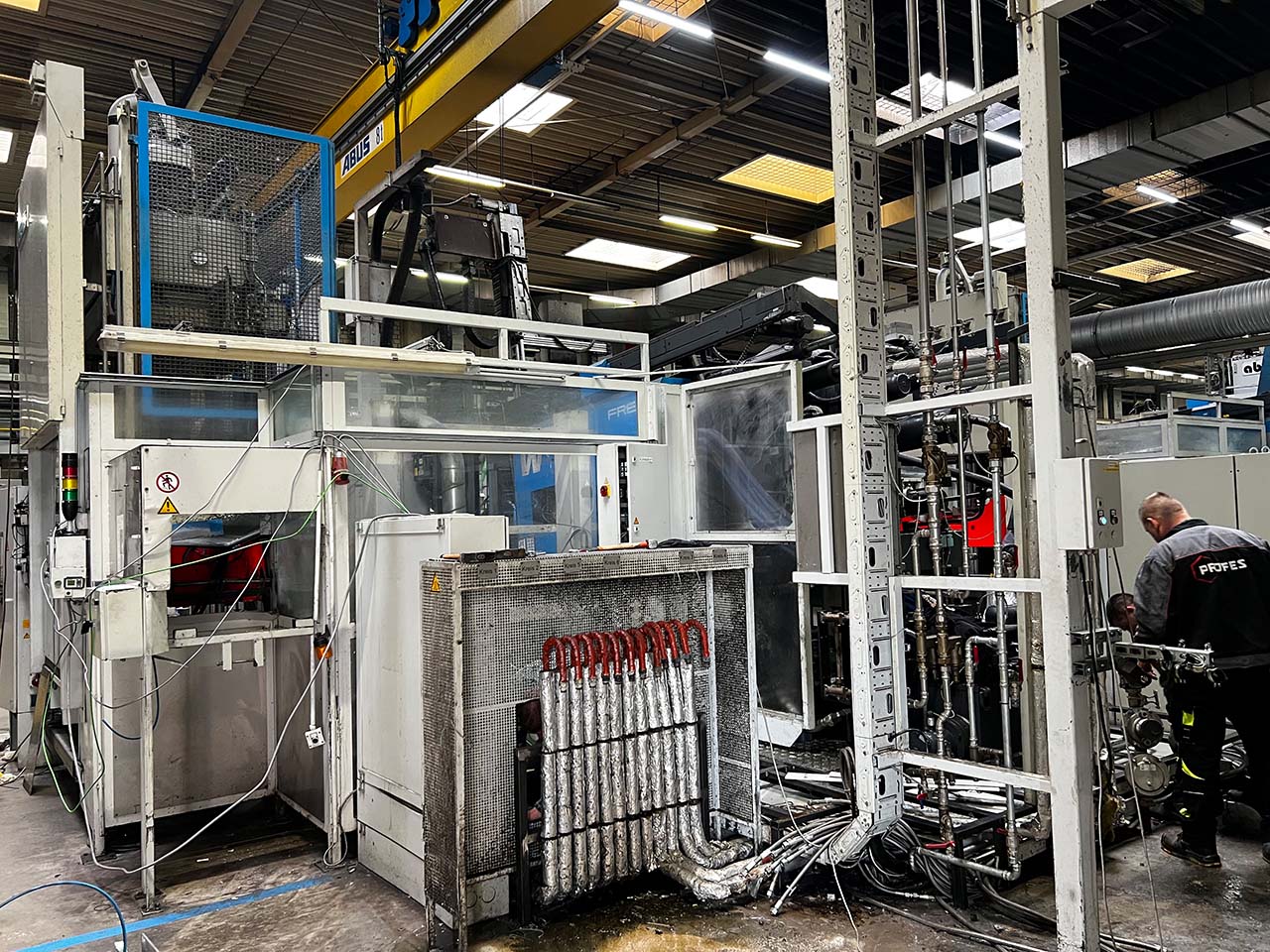

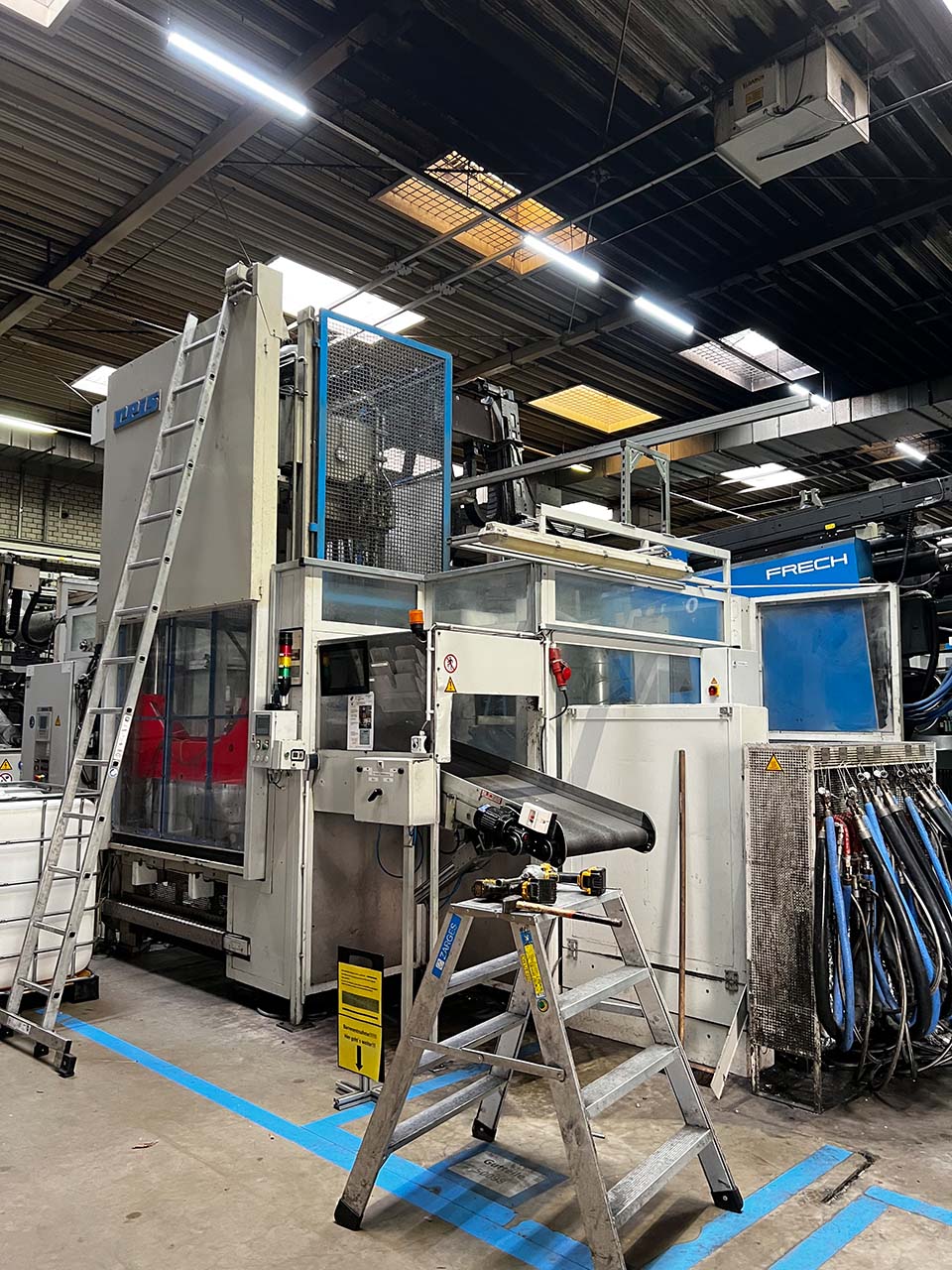

The project involved a modern FRECH W 500 die casting machine manufactured in 2020, including the associated automation and peripheral equipment.
Five specialised technicians dismantled the complete casting cell within one week. The main machine was then transported on a low-loader, while the attachments and automation units were transported to France on two additional trucks.
From production equipment to a transport-ready casting cell
Relocating an automated die casting cell requires precise coordination between dismantling, documentation, packaging, internal transport and loading.
In addition to the main machine, the furnace, charging system, spraying unit, robot, trimming press and conveyor equipment also had to be completely and professionally prepared.
Structured project process
The complete equipment scope and the required dismantling and logistics stages were coordinated before work began.
Five specialised technicians
The specialist team dismantled the main machine, automation and peripheral equipment within one week.
Direct delivery to France
All components were packaged, loaded and transported directly to the customer.
Which components were included in the FRECH W 500 casting cell?
The equipment consisted of the die casting machine as well as extensive furnace, charging, spraying, robot, trimming and conveyor technology.

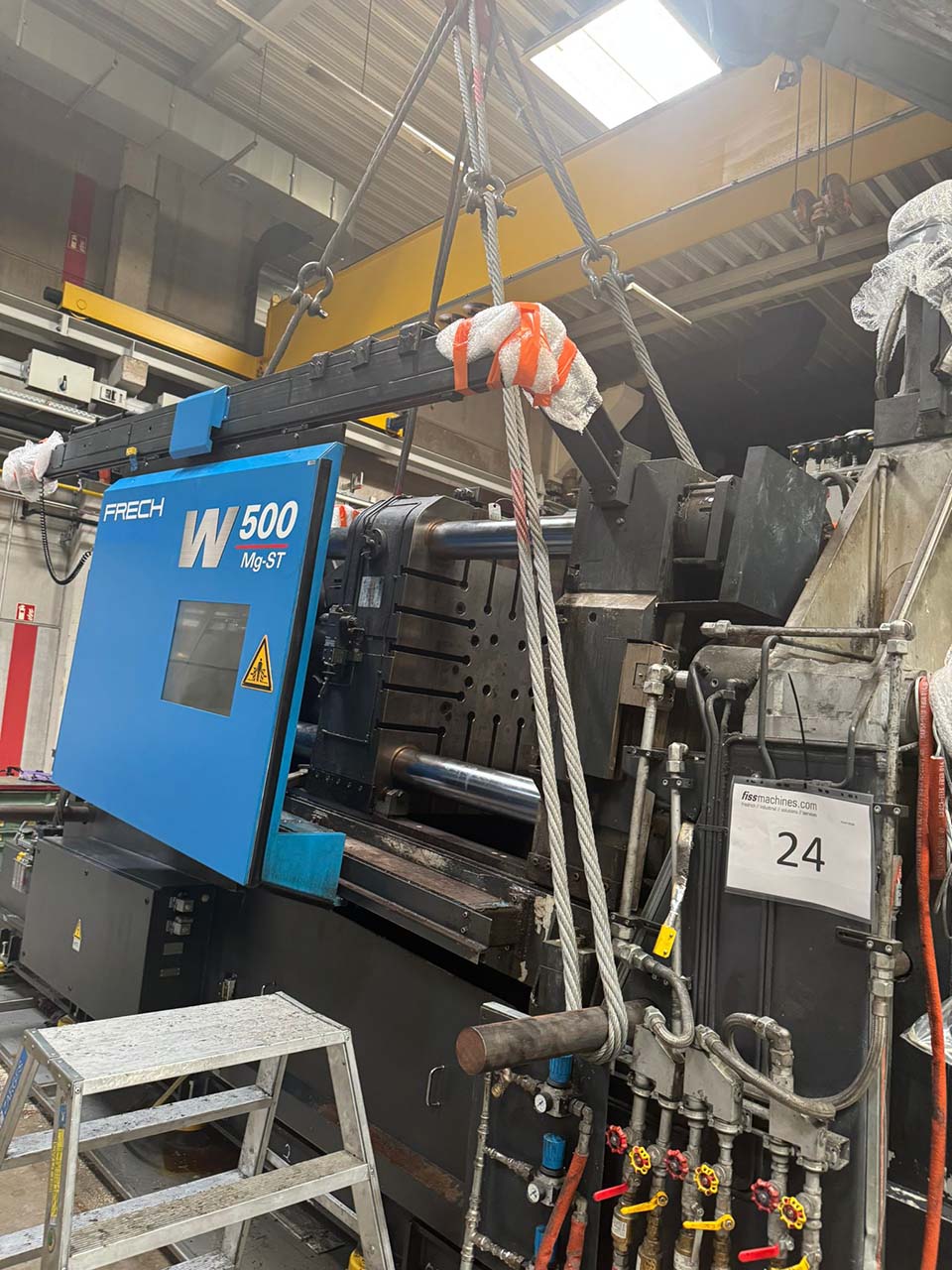

FRECH W 500
Modern die casting machine manufactured in 2020 as the centre of the automated casting cell.
- Manufactured in 2020
- Automated production solution
- For industrial series production
- Central equipment control

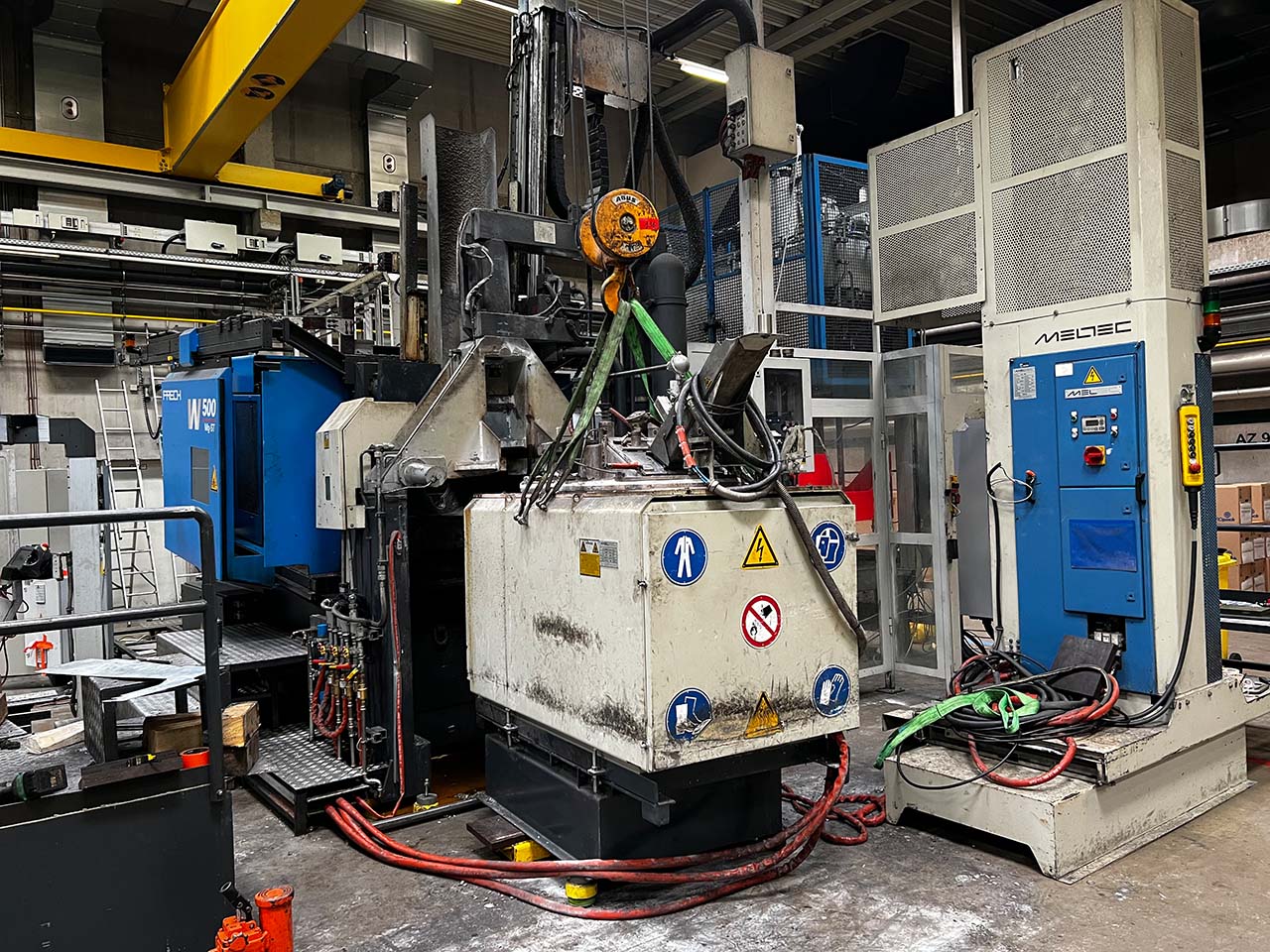

Metec MB500/240 crucible furnace
The crucible furnace supplies the molten metal under controlled conditions for the die casting process.
- Controlled metal supply
- Integration into the casting cell
- Stable temperature conditions
- Industrial furnace technology
Meltec ingot charging station
The charging station supports the automated feeding of metal ingots into the furnace system.
- Automated ingot feeding
- Reduced manual work stages
- Continuous furnace charging
- Coordinated material flow
Linear Böhmer spraying unit
The linear spraying system automatically treats the die surfaces between individual casting cycles.
- Linear movement system
- Automated die treatment
- Repeatable spraying processes
- Integration into the machine cycle
ABB IRB 2600-20/1.65 Foundry Plus
The foundry robot performs automated handling tasks within the casting cell.
- Foundry Plus design
- Automated component handling
- Repeatable movement sequences
- Integration into the complete system
Reis SEP 13 65 Dialog III
The trimming press with Z-conveyor adds mechanical finishing and component transport to the casting cell.
- Automated trimming
- Z-conveyor
- Integration into the material flow
- Coordinated finishing process
From dismantling to secure loading
All work stages were coordinated so that the complete casting cell could be transported safely and on schedule to its new location.
Equipment assessment
The main machine, automation and peripheral equipment were recorded as the complete project scope.
Dismantling
Five specialised technicians professionally dismantled the casting cell within one week.
Packaging
The individual components were carefully protected against damage during transport.

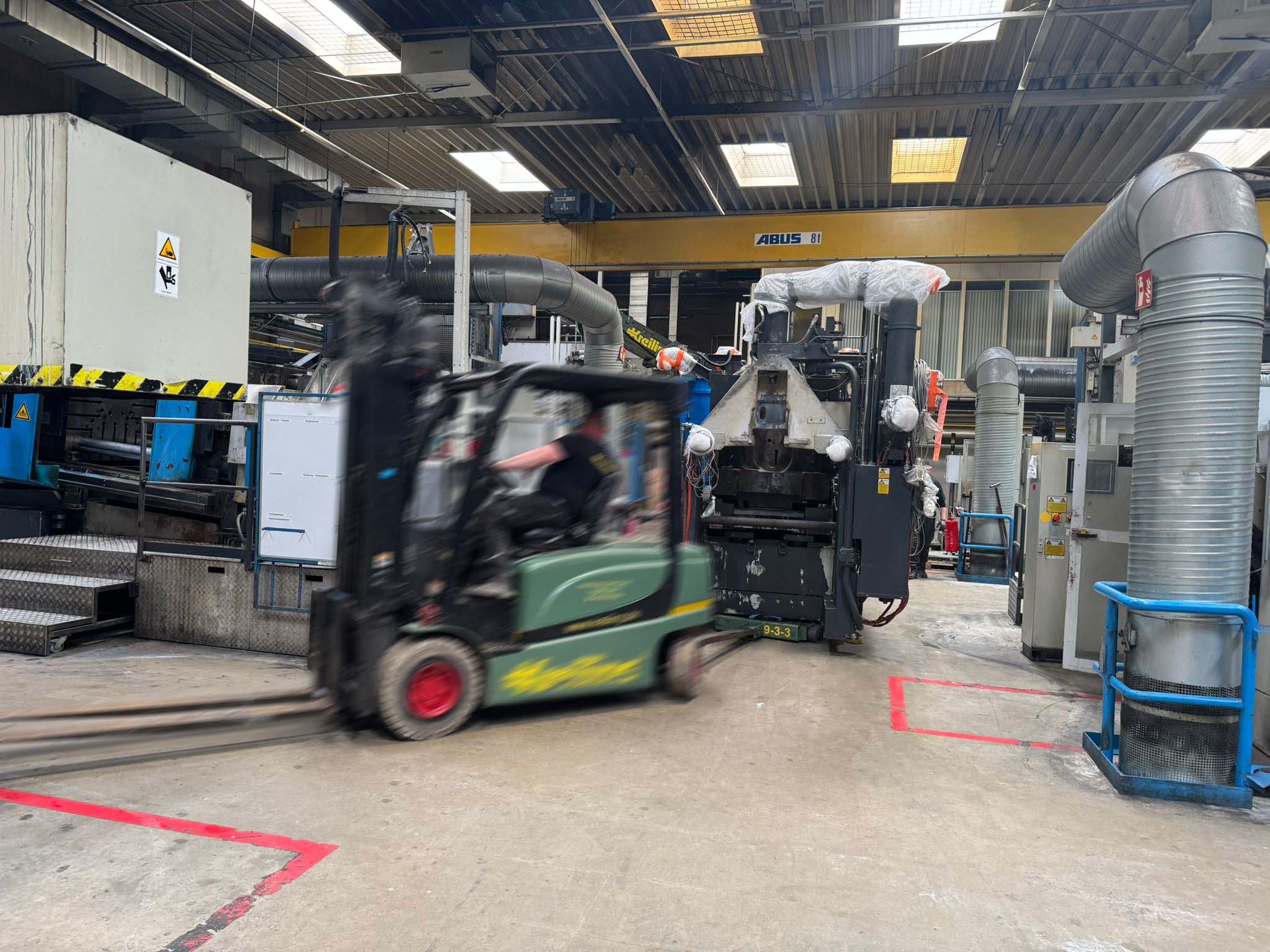

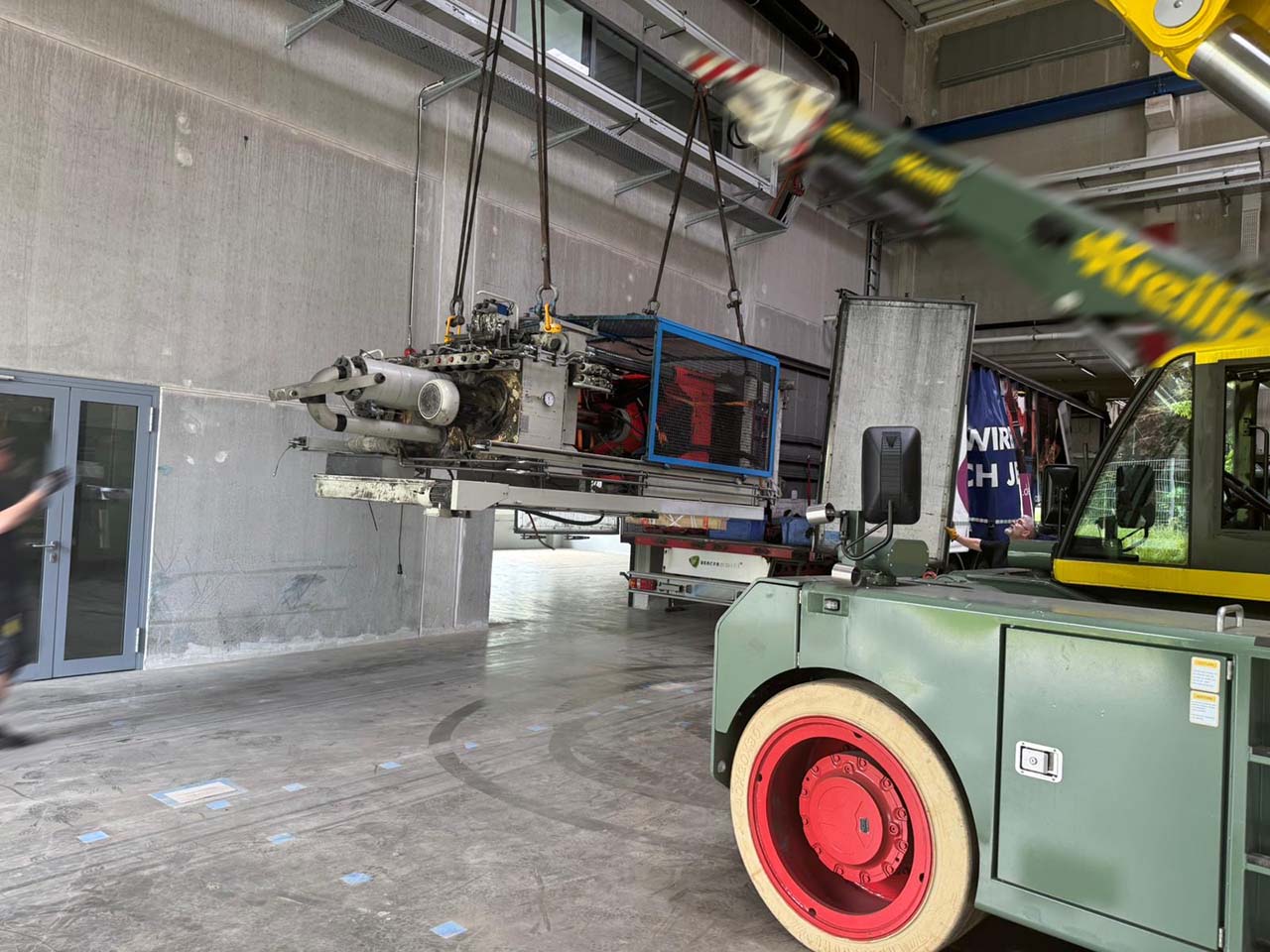

Loading
The main machine and automation units were loaded onto suitable transport vehicles.
Transport
The complete equipment was delivered directly and on schedule to the customer in France.
How was the complete casting cell transported?
Different transport vehicles were used for the main machine, attachments and automation equipment.

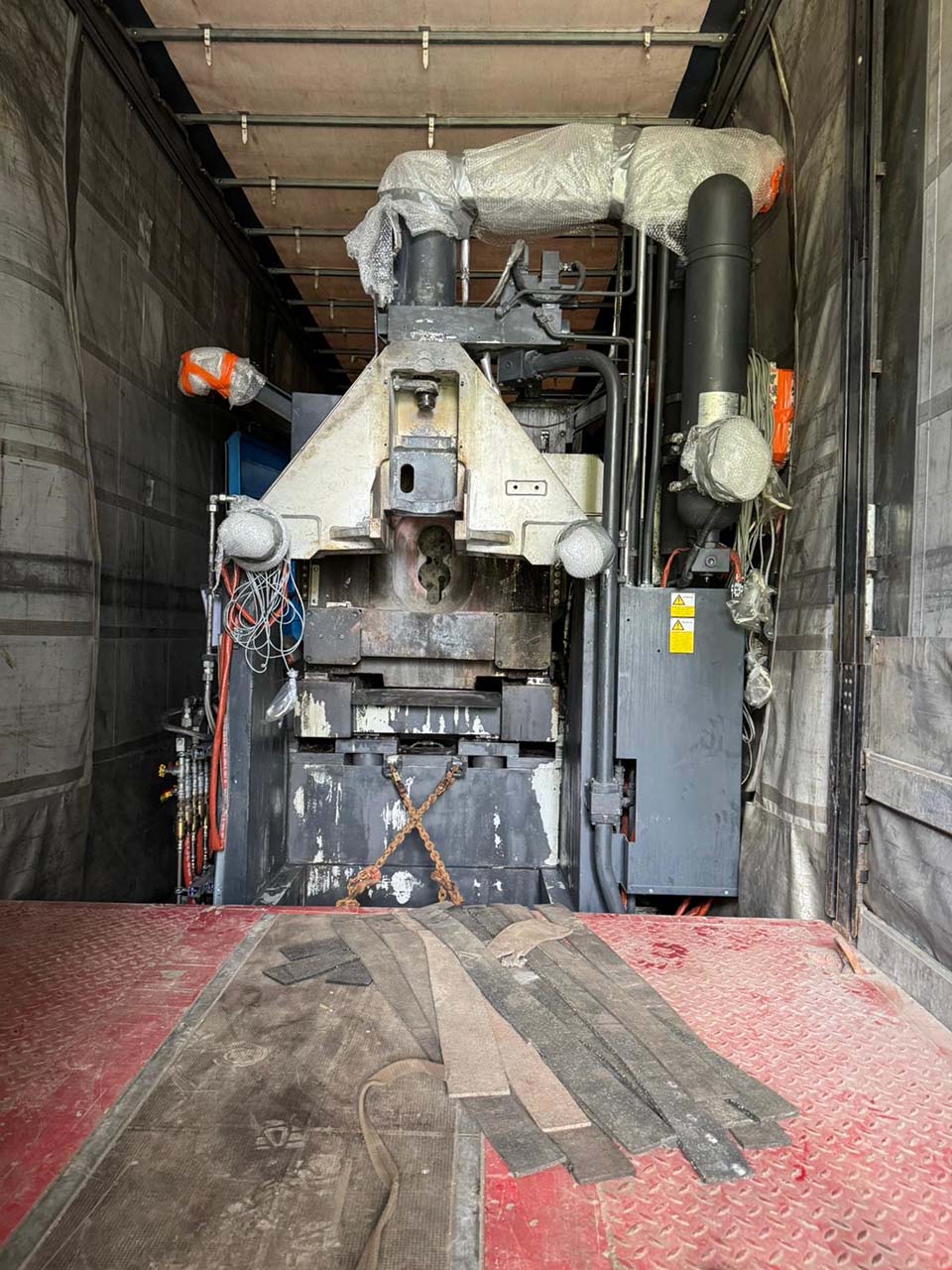

Low-loader
The FRECH W 500 die casting machine was transported to the customer on a low-loader.

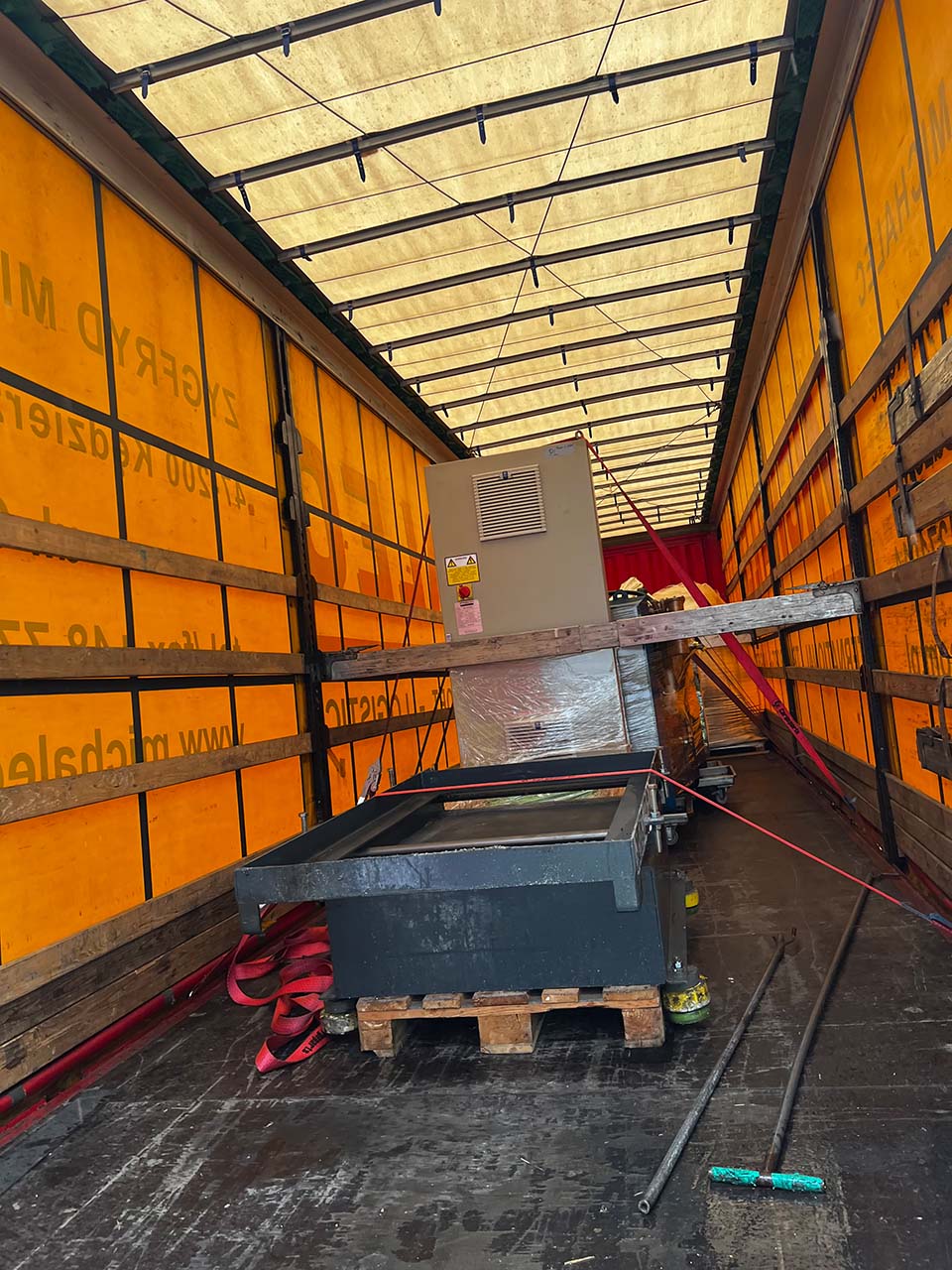

Additional trucks
Attachments and automation units were transported on two further trucks.
Dismantling time
The five-person specialist team completed dismantling of the casting cell within one week.
Why is the structured dismantling of a casting cell essential?
An automated casting cell consists of numerous mechanical, electrical and control-system interfaces.
Controlled disconnection protects the individual components and creates the conditions required for safe loading and subsequent reinstallation.
- Planned sequence of dismantling work
- Professional disconnection of mechanical connections
- Controlled disconnection of electrical interfaces
- Dismantling of the complete automation equipment
- Protection of sensitive equipment components
- Securing of moving assemblies
- Preparation for internal transport
- Coordination with the packaging and loading team

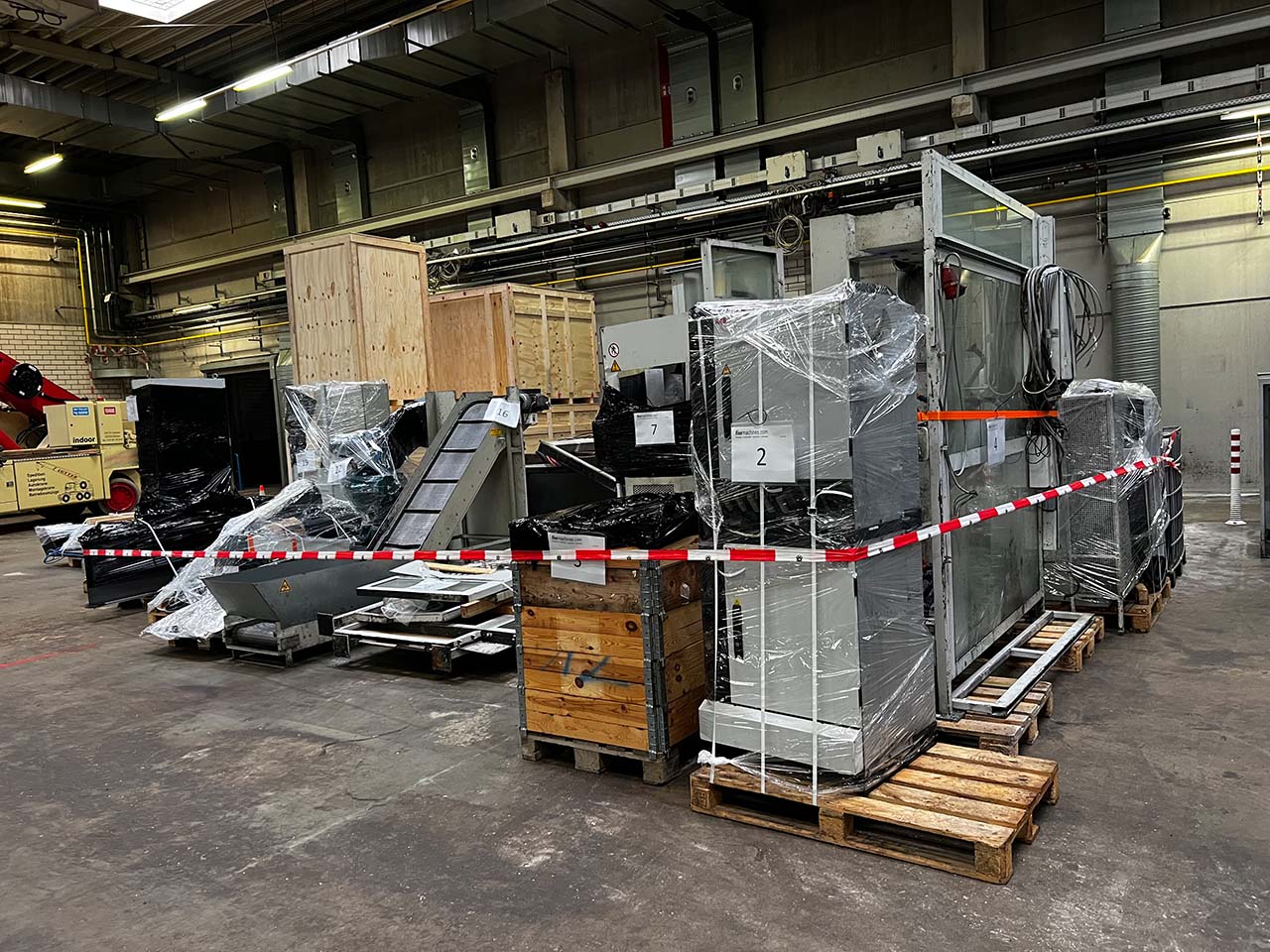

Transport protection for the main machine, robot and peripherals
Following dismantling, all components were carefully packaged to protect them against damage during loading and transport.
Securing heavy assemblies
Moving and load-bearing machine components were prepared for transport on the low-loader.
Protection of sensitive technology
The robot, control components and attachments were protected against mechanical stress.
Organised transport preparation
The furnace, charging system, spraying unit, press and conveyor equipment were prepared for the designated trucks.
What added value does the automated FRECH W 500 casting cell provide?
The coordinated combination of die casting machine, metal supply, spraying technology, robot and trimming press supports a continuous production process.
Automated material flow
Charging, robot handling and conveyor technology reduce manual transfer stages.
Repeatable processes
Coordinated automation supports consistent production cycles.
Integrated finishing
The Reis trimming press enables direct further processing of the cast components.
Reliable series production
The modern casting cell supports the long-term production of high-quality zinc die-cast components.
Professional organisation of all logistics processes
The main machine and its automation equipment had to be loaded in a coordinated sequence and transported to the same destination.
Structured organisation ensured that the equipment arrived at the customer on schedule and in proper condition.
- Coordination of the designated transport vehicles
- Separate planning for the main machine and peripherals
- Loading the machine onto a low-loader
- Distribution of attachments across two trucks
- Transport-safe securing of all components
- Coordinated departure of the transport vehicles
- Direct transport to the customer in France
- Safe and on-schedule delivery
Modern casting cell for the production of zinc die-cast components
With the FRECH W 500 and its comprehensive automation equipment, the customer receives a modern production solution for the reliable manufacture of high-quality zinc die-cast components.
Modern technology manufactured in 2020
The comparatively recent casting cell provides a modern technical basis for continued production.
Complete process integration
Metal feeding, spraying, handling, trimming and conveying are coordinated within the equipment.
Reliable series manufacturing
The complete casting cell supports recurring and automated production processes.
Professionally relocated complete system
Professional dismantling and packaging protect the components and support their continued use.
Dismantling and relocation of complete die casting cells
FISS supports companies with the technical and logistical implementation of national and international machinery relocation projects.
- Long-standing experience with die casting equipment
- Project planning for complete casting cells
- Mechanical and electrical dismantling
- Dismantling of robots and automation equipment
- Professional packaging
- Internal machine transport
- Heavy-load and low-loader loading
- Coordination of multiple transport vehicles
- International machine logistics
- One contact for the complete project
