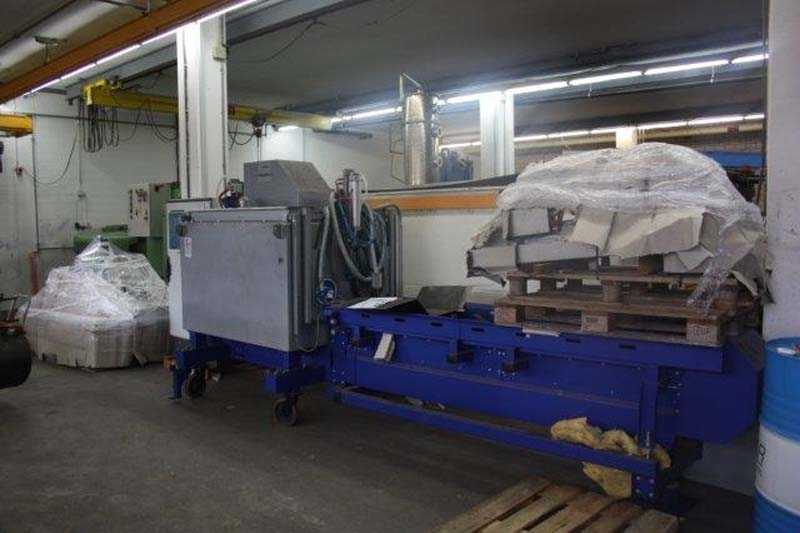

BSN continuous heat treatment furnace O1839, used
details
| Heat treatment furnace | |
| Manufacturer | BSN Therm |
| Model | continuous |
| Year of Manufacture | 2016 |
| Comments |
| Working temperature | 465 °C |
| Material | Aluminium structural casting parts |
| Width | 401 mm |
| Length | 239 mm |
| Height | 124 mm |
| Weight | 2.41 kg / pc. |
| LGO external dimensions | |
| Length | 6000 mm |
| Width | 3351 mm |
| Clearance height | 3800 mm |
| LGO Usable dimensions | |
| Length | 4410 mm |
| Width | 1040 mm |
| Clearance height | 780 mm |
| Number of control zones | 2 pieces |
| Material of outer casing | Normal steel |
| Insulation | Biodegradable fibre |
| Material of furnace interior parts | Cr-Ni steel |
| External dimensions of air jet hardening zone | |
| Length | 4050 mm |
| Width | 4253 mm |
| Clearance height | 6743 mm |
| Usable dimensions of air jet hardening zone | |
| Length | 1800 mm |
| Width | 1000 mm |
| Clearance height | 675 mm |
| Other air jet hardening data | |
| Handle support | 1 piece |
| LGO heating | |
| Type | Electrical |
| Number of heating elements | 3 pcs. |
| Zone 1 | 2 each 50 kW |
| Zone 2 | 1 each 50 kW |
| LGO temperatures | |
| Max. furnace temperature | 540 °C |
| Operating temperature | 465 °C |
| Temperature tolerance in material during holding phase | ± 3 K |
| LGO media supply | |
| Required air pressure for pneumatic system | 6 bar |
| Diameter of compressed air line | 1/2 inch |
| Delivery time | immediatley |
| Price | on request |
