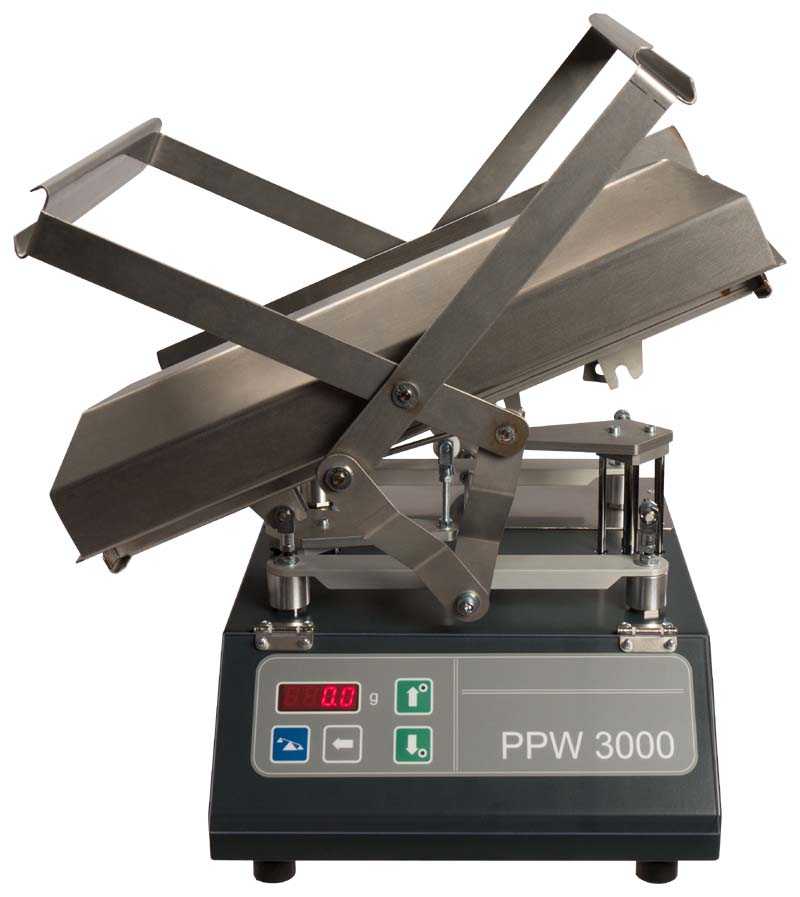

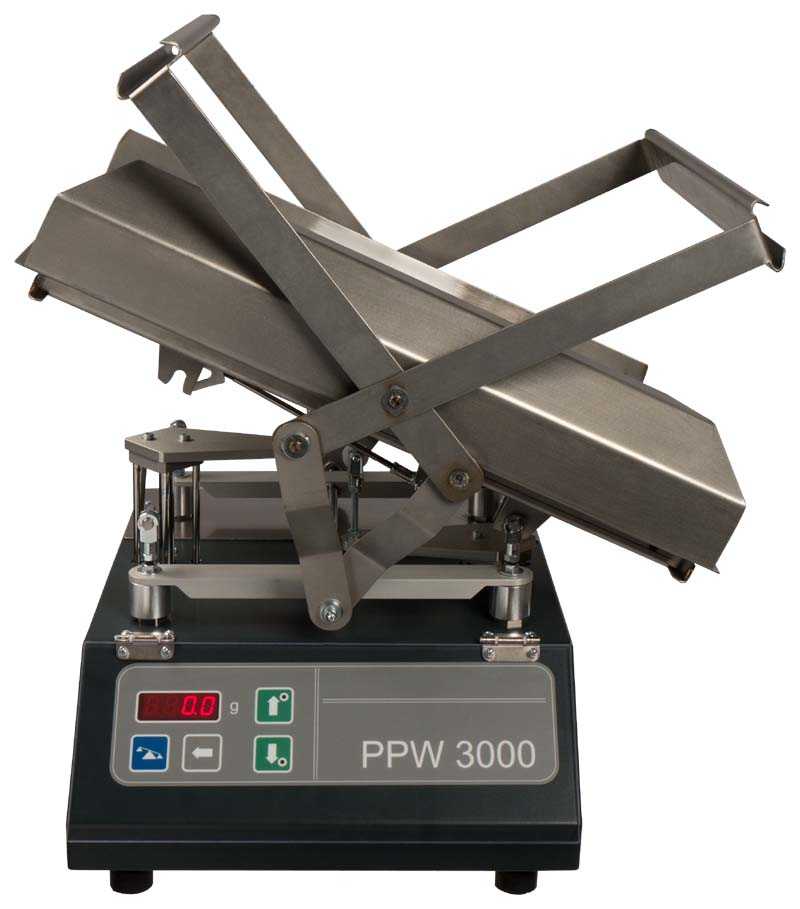

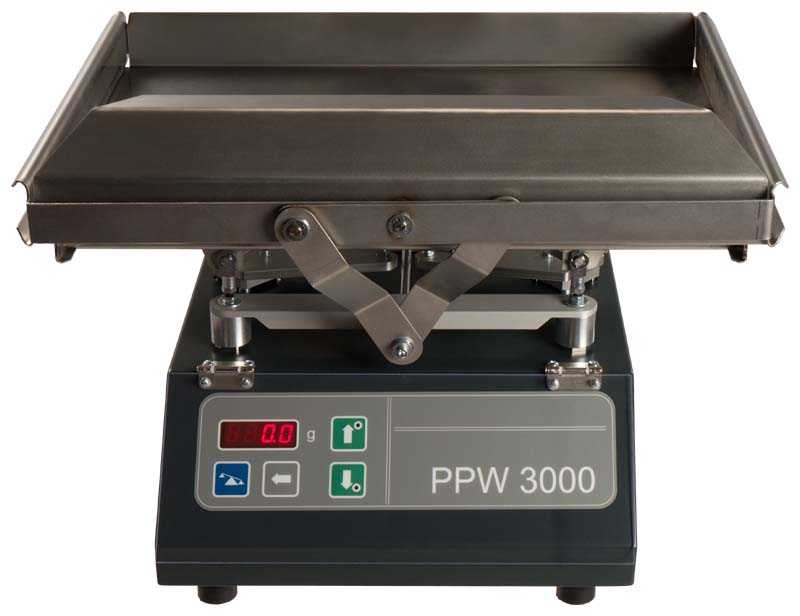

PPW 3000 Double tilt high speed weight sensing device for zinc die casting
details
Double tilt weight sensing device for hot chamber die casting machines
Model PPW 3000
Technical Data
Drive of weighing plate electro-pneumatical
Control system microcomputer
Time of scale 0,2 s
Weighing cycle 3,5 s
Measuring range 5 - 2000 grams
Smallest detectable weight tolerance 0,8 g (1% of FS weight)
Dimension weighing plate 500 x 375 x 100/50 mm
Direction of tilting correct parts - out of tolerance parts
Power supply 115 / 230 VAC 0,15 / 0,3 A

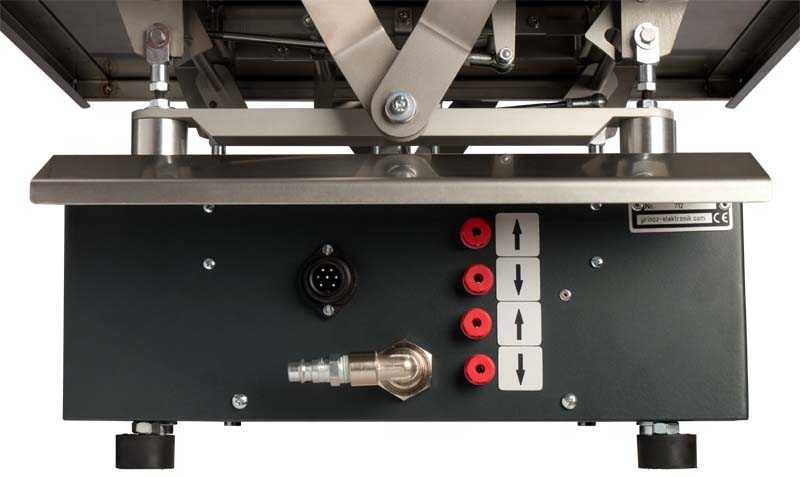

Plug connection to die casting machine Harting plug, HAN-E, 6-pole
Connection cable 5m (standard)
System pressure for weighing plate 4 - 6 bar max.
Description
Setup via keyboard. Display indicates part weight in grams, tolerances in grams or % of total weight and error messages. Digital automatic Zero compensation after each weighing cycle. Relay outputs. Weighing plate stainless steel with 100/50 mm high side walls.

Option

Serial interface for PC, printer, etc.

Application

  • Zinc die casting in front of dcm via a chute
  • manufactoring reports
  • quality control
  • die protection

Advantages:

  • very fast weighing process
  • user-friendly scale
  • robust construction
Delivery time on request
Price on request
Subject to alterations in the technical description and prior sale.
manufacturer: partnership
Article-No.: AW3003
PDF view

PPW 3000 Double tilt high speed weight sensing device for zinc die casting

manufacturer: partnership
Article-No.: AW3003
weighing plate: 500x375x100/55mm, measuring range: 5-2000g, weighing time: 0,2s, dump direction of correct / out of tolerance parts selectable
Double tilt weight sensing device for hot chamber die casting machines
Model PPW 3000
Technical Data
Drive of weighing plate electro-pneumatical
Control system microcomputer
Time of scale 0,2 s
Weighing cycle 3,5 s
Measuring range 5 - 2000 grams
Smallest detectable weight tolerance 0,8 g (1% of FS weight)
Dimension weighing plate 500 x 375 x 100/50 mm
Direction of tilting correct parts - out of tolerance parts
Power supply 115 / 230 VAC 0,15 / 0,3 A
Plug connection to die casting machine Harting plug, HAN-E, 6-pole
Connection cable 5m (standard)
System pressure for weighing plate 4 - 6 bar max.
Description
Setup via keyboard. Display indicates part weight in grams, tolerances in grams or % of total weight and error messages. Digital automatic Zero compensation after each weighing cycle. Relay outputs. Weighing plate stainless steel with 100/50 mm high side walls.

Option

Serial interface for PC, printer, etc.

Application

  • Zinc die casting in front of dcm via a chute
  • manufactoring reports
  • quality control
  • die protection

Advantages:

  • very fast weighing process
  • user-friendly scale
  • robust construction
Delivery time on request
Price on request
