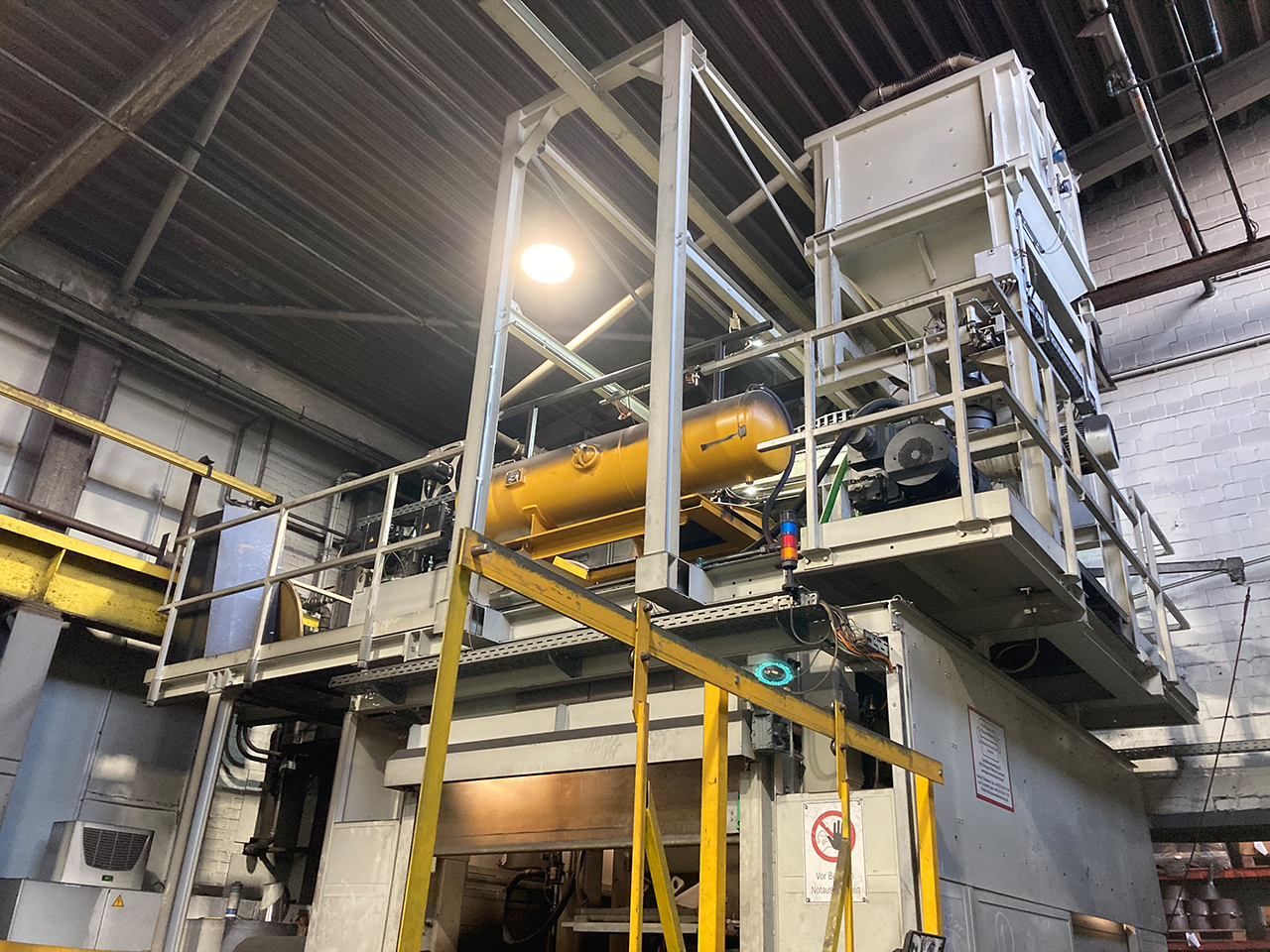

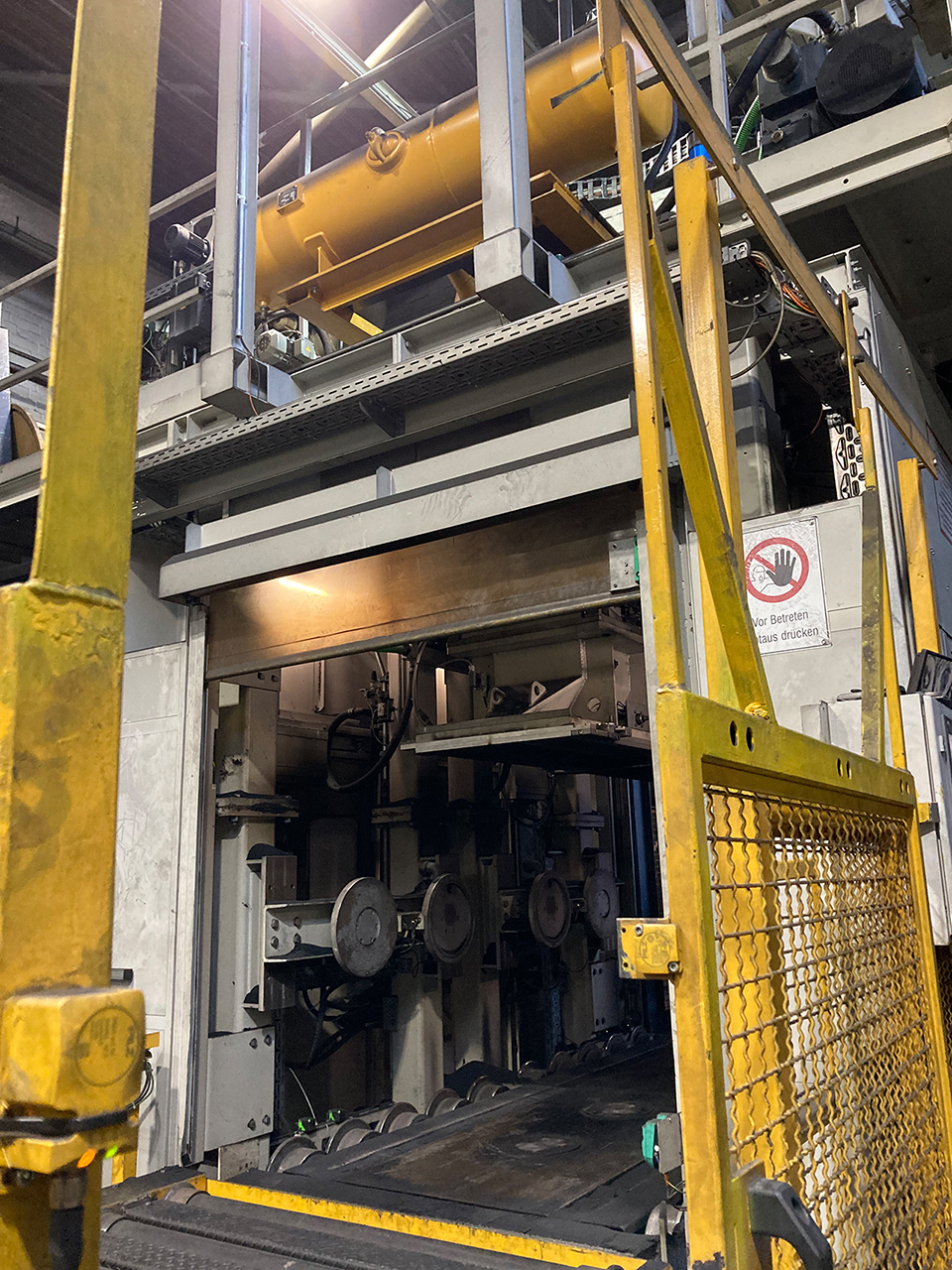

Reißaus & Baumberg KCBS 200 automatic core shooter KS2615, used
details
| Core shooter machine | |
| Manufacturer | Reißaus & Baumberg |
| Type | KCBS 200 |
| Year of manufacture | 2018 |
| Hydraulic | |
| Comments |
- continuous mixer with a mixing capacity of 10t/h core shooting machine with 200 l shooting volume
- 16 PCS. HYDRAULIC LOCKING CYLINDERS FOR VERTICAL DIVIDING HALVES

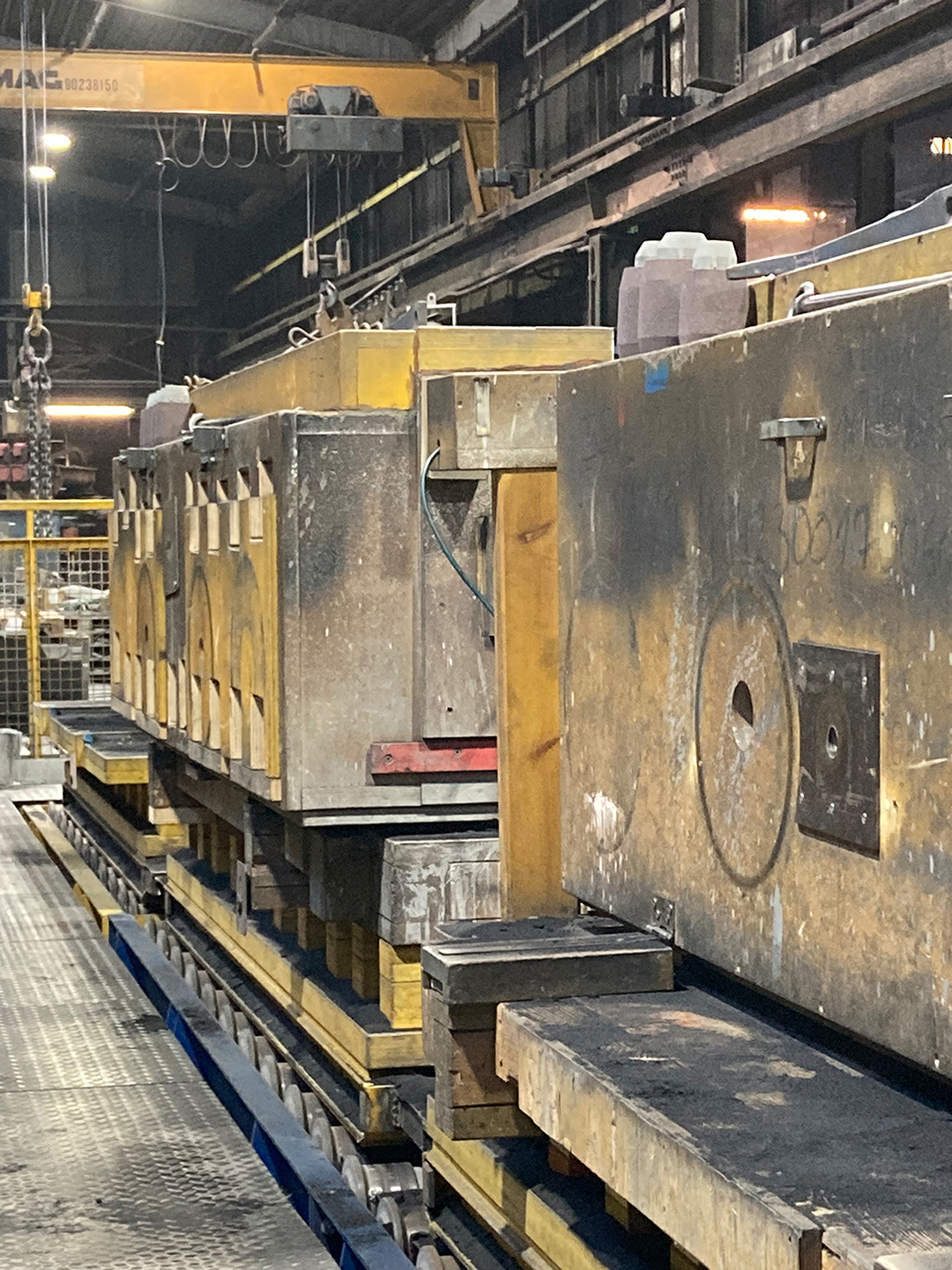

- 2x STOCK TRACK GUIDED TRANSFER CAR FOR TRANSPORTING THE CORE BOX IN AND OUT OF THE CORE SHOOTER

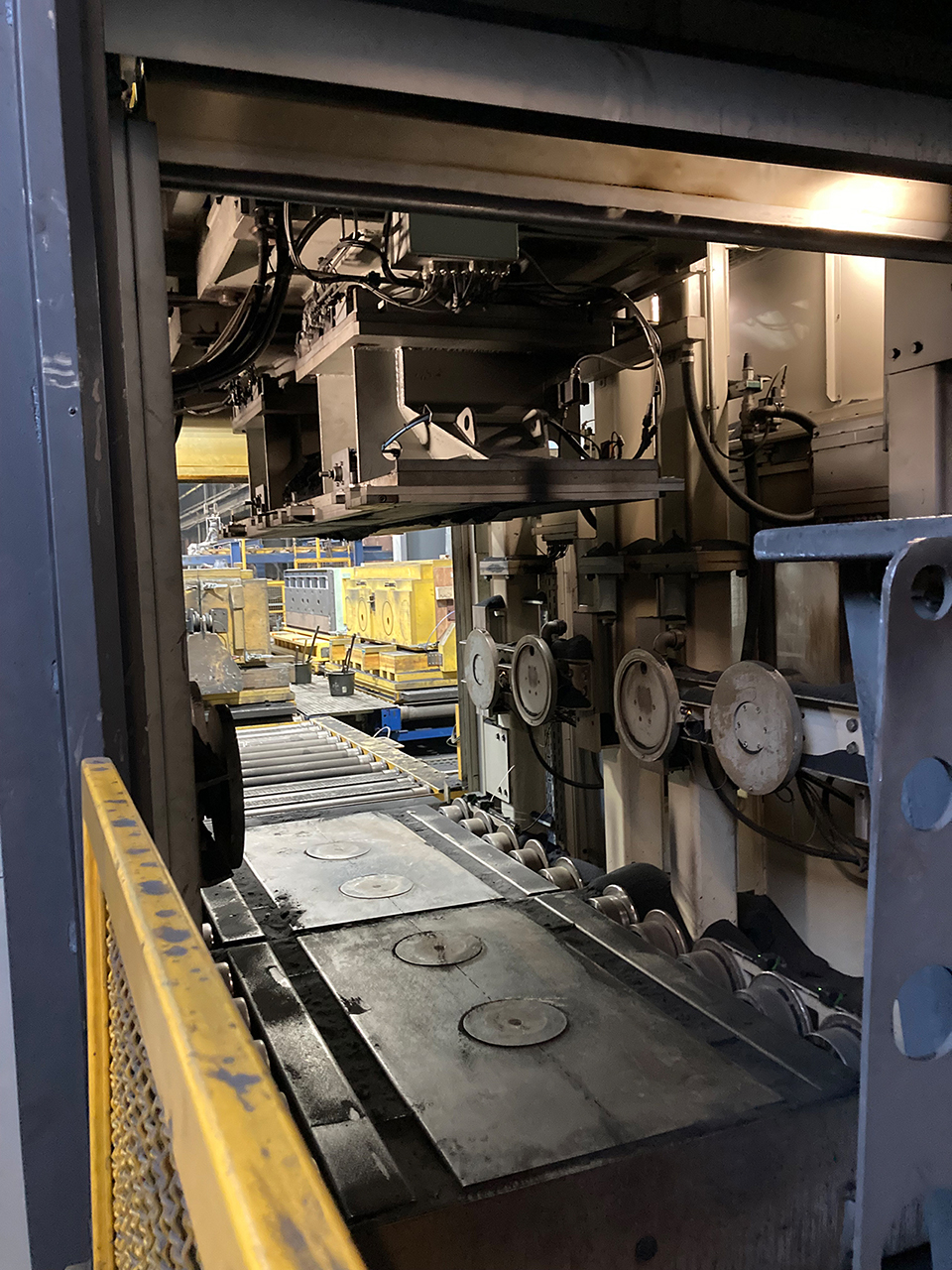

- 2x PIECES OF DRIVEN DISC ROLLER CONVEYORS FOR TRANSPORT INTO AND OUT OF THE CORE SHIFTER
- SAFETY DEVICE WITH PROTECTION CORE REMOVAL LIGHT CURTAIN
Technical Details
| Sand container | |
| Core weight, max | kg |
| Outer dimension with sand bunker and extended table | 4000 X 4000 X 4000 mm |
| Electr. connection lelstuna KSA | 16-18000 kW |
| Empty tent machine le shot | 25 min |
| Shooting volume max. with one sand shot | 2 dm'/kg |
| Multiple shot with different pressures | 1807 |
| Shootsvtinder | la |
| Shooting binder closure | Sheet metal |
| Locking coaf | 2 x sand slide DN 290 |
| Shootingialte | oeschraubt |
| Shooting head /expendable area depth x width | hvdraullsch clamped |
| Working height from the top of the floor | 2600 X 300 mm |
| Max. clamping force | |
| Clamping stroke le Saannstation | 800.000 mm |
| Max. scanning force | 150 N |
| Content of sand hopper | 160.000 am |
| Volume of air reservoir | Pneumatlsch / electric |
| Compressed air connection | 2 X 500 Zoll |
| Hvdraull system | 2x 1.s- |
| Axial piston cumce | 250 am/min |
| Drivetrain | 45 kW |
| Arms pressure | 20 bar |
Dimensioning
Capacity of 3 core boxes/h
Curing tent of the molding material 30 min.
Core weight according to cutout Großkem - spectrum 525 kg- 1160kg
With 3-4 molds per hour and 100% mixing tent, a capacity of about 3500kg is needed.
This means that a mixer with a mixing capacity of 10 - 15 1/h is sufficient.
During sand shooting, the sand hopper of the core shooter is gelOUL in parallel Max. 225kg
at a Mlscher1elstung of 10 OOkg/h = 167kg/mln 4 225kg : 167kg/mln = 1,4mln mixing tent IOr a molding material weight In the sand bunker of 225kg 1160kg core weight: 167kg/min =7 min pure mixing tent
For a core weight of max. 1160kg = 6 mixes x 1,4min = 8,4 min pure shooting time Without the handling tent of the core box and the required machine movements, the pure tent for full shooting of the current max. core box is around 10mln further 10min are available for core box handling and mechanical travel times of the core shooter.
| Delivery time | immediately |
| Price | on request |
