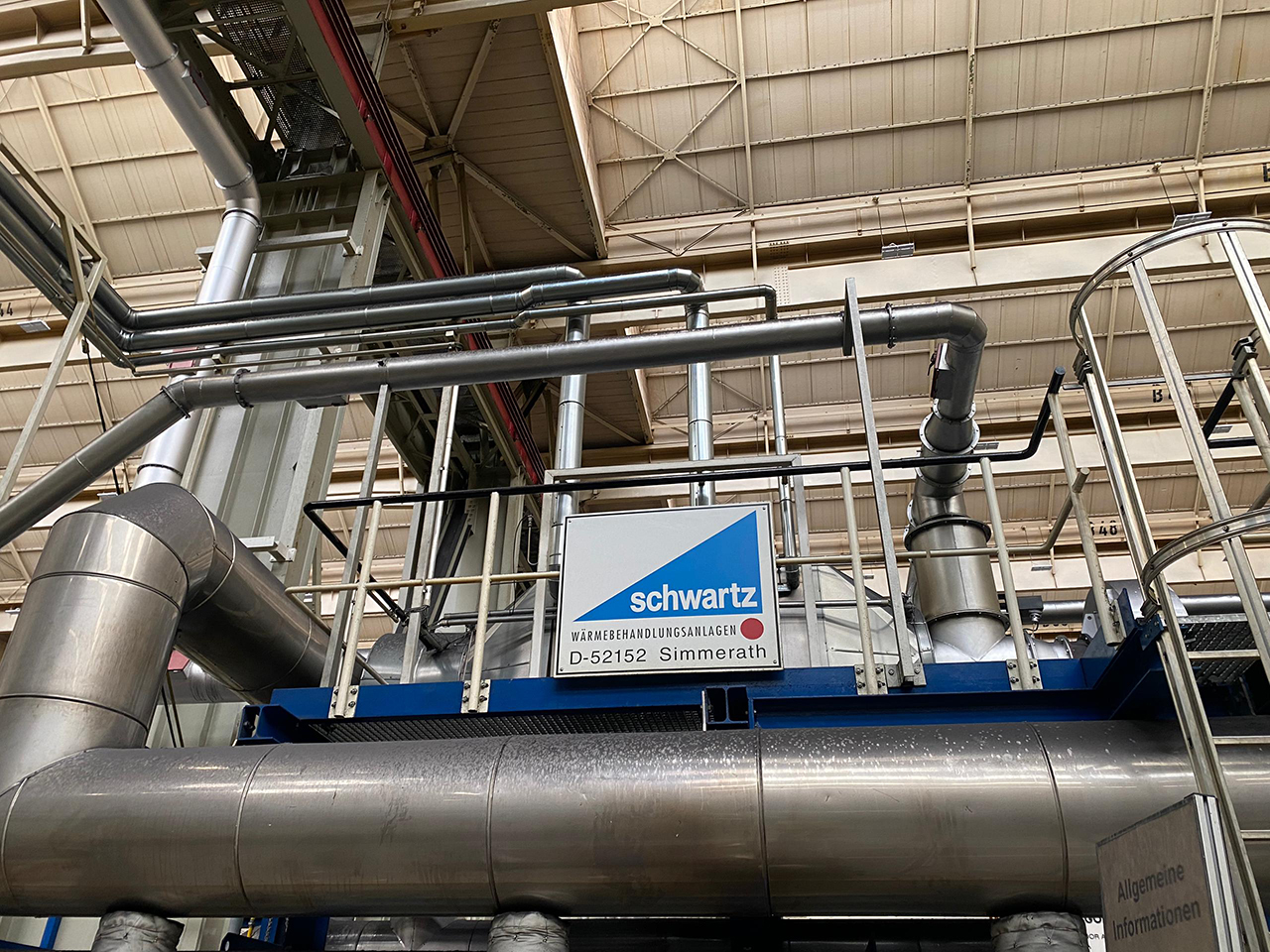

Schwartz roller hearth plate furnace PR2496, used
details
Roller hearth plate furnace
Manufacturer Schwartz
Type GA1804
Design
Year of manufacture 2014
Comment heat treatment furnace for press hardening. Steel sheets made of 22MnB5 are heated to 935°C in the furnace (trade name Arcelor Usibor 1500)
Technical data
Circuit boards
Length max. 1,700 mm (one board / batch)
Length max. 2,200 mm (one board / batch)
Thickness max. 2.5 mm
Batch weight max. 20 kg
Throughput capacity, max. 3,500 kg / h
Blanks for partial hardening Length max. 1,500 mm (one board / batch)

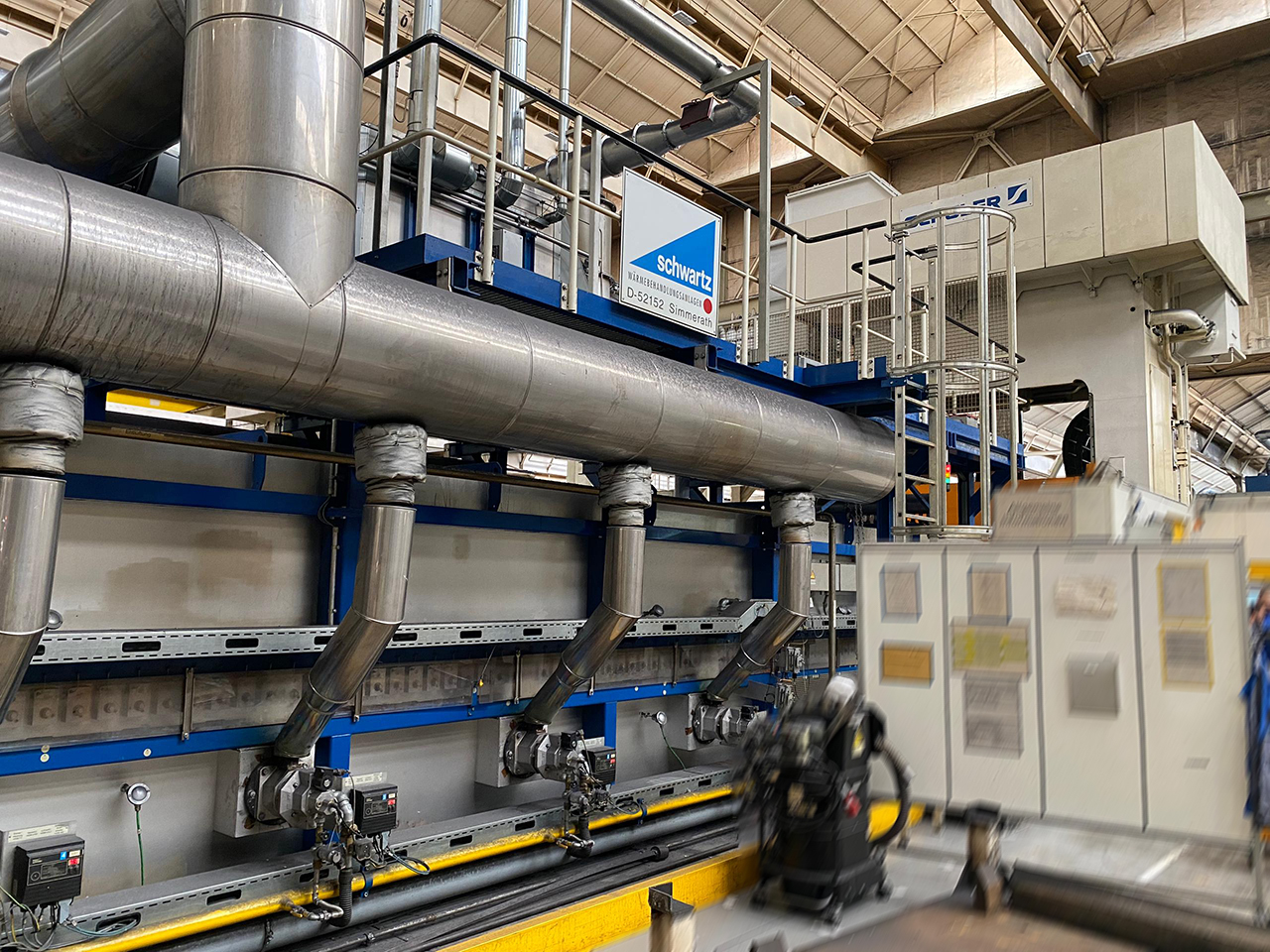

Heat treatment plant
Length 32,648 mm
Width 7,307 mm
Height 4,593 mm
Temperatures
Furnace temperature, max. 970 °C
Working temperature max. 950 °C
Material temperature required for Removal of blanks 930 °C - 950 °C

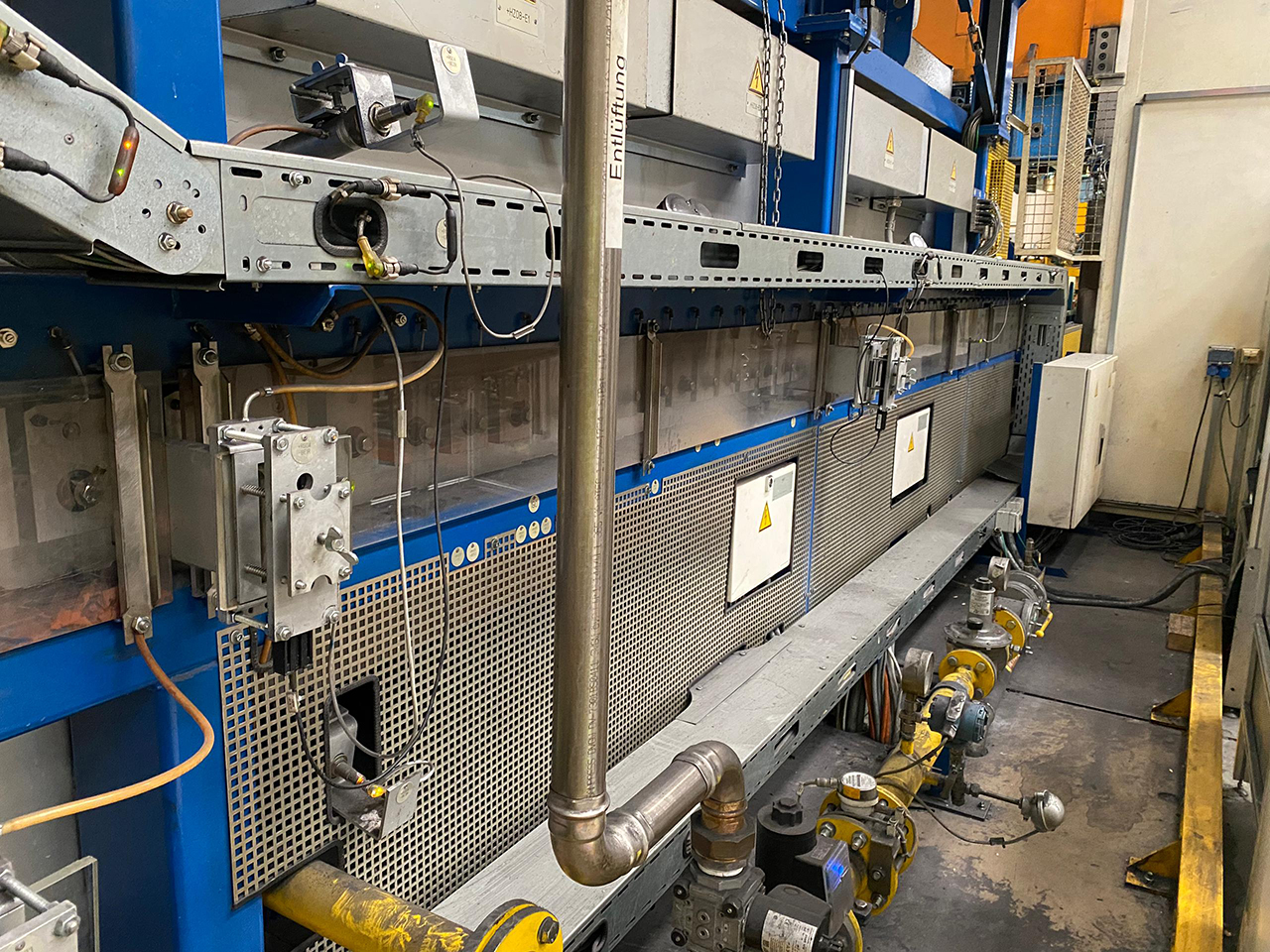

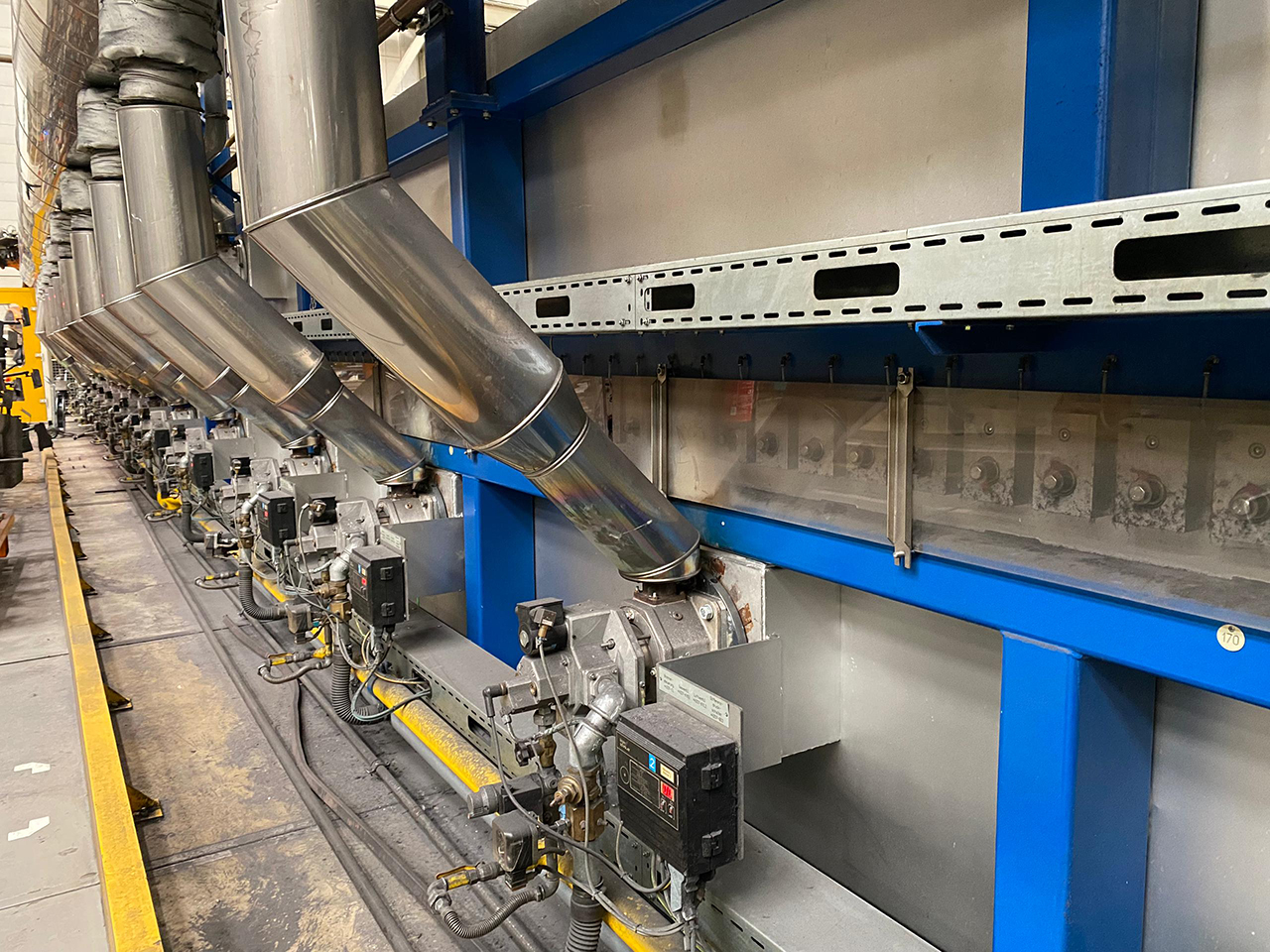

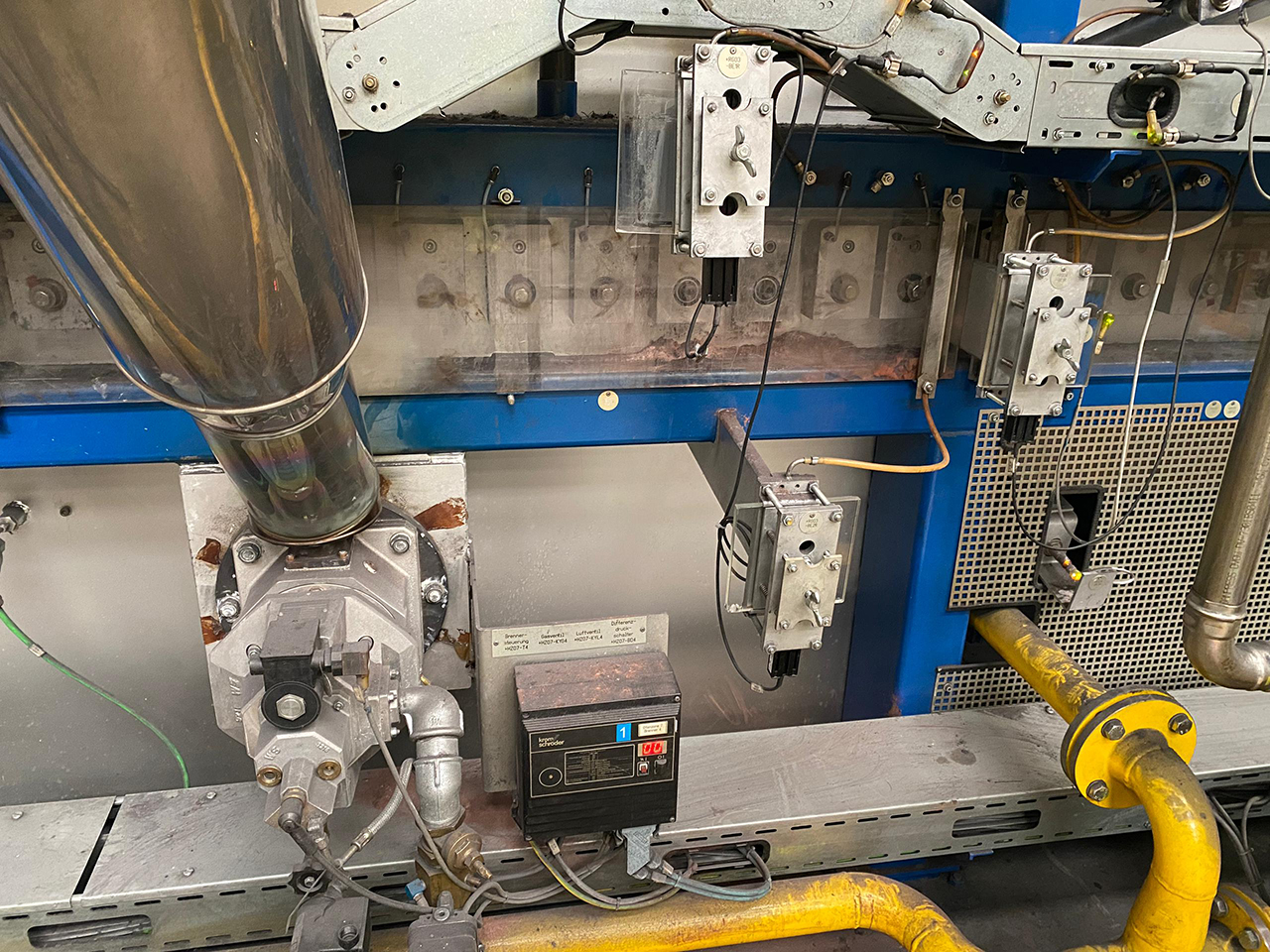

Roller hearth furnace
Number of heating zones 9 pieces
Length, approx 25,700 mm (heated section)
Width 2,300 mm
Height 100 mm
Furnace rollers
Material 55 ceramic solid rolls 172 ceramic hollow rollers Coated
Diameter of the ceramic rollers, approx. 80 mm
Roller pitch 120 mm
Delivery time Feb. 2024
Price on request
Subject to alterations in the technical description and prior sale.
manufacturer: Schwartz
Article-No.: PR2496
