Tie Bar Measuring System |
|
Model |
SP 1 Spare Packet for SDM 4000 RS |
Scale of delivery |
|
1 RS-measuring amplifier for battery mode |
BTRS1 |
1 measuring case |
|
Description |

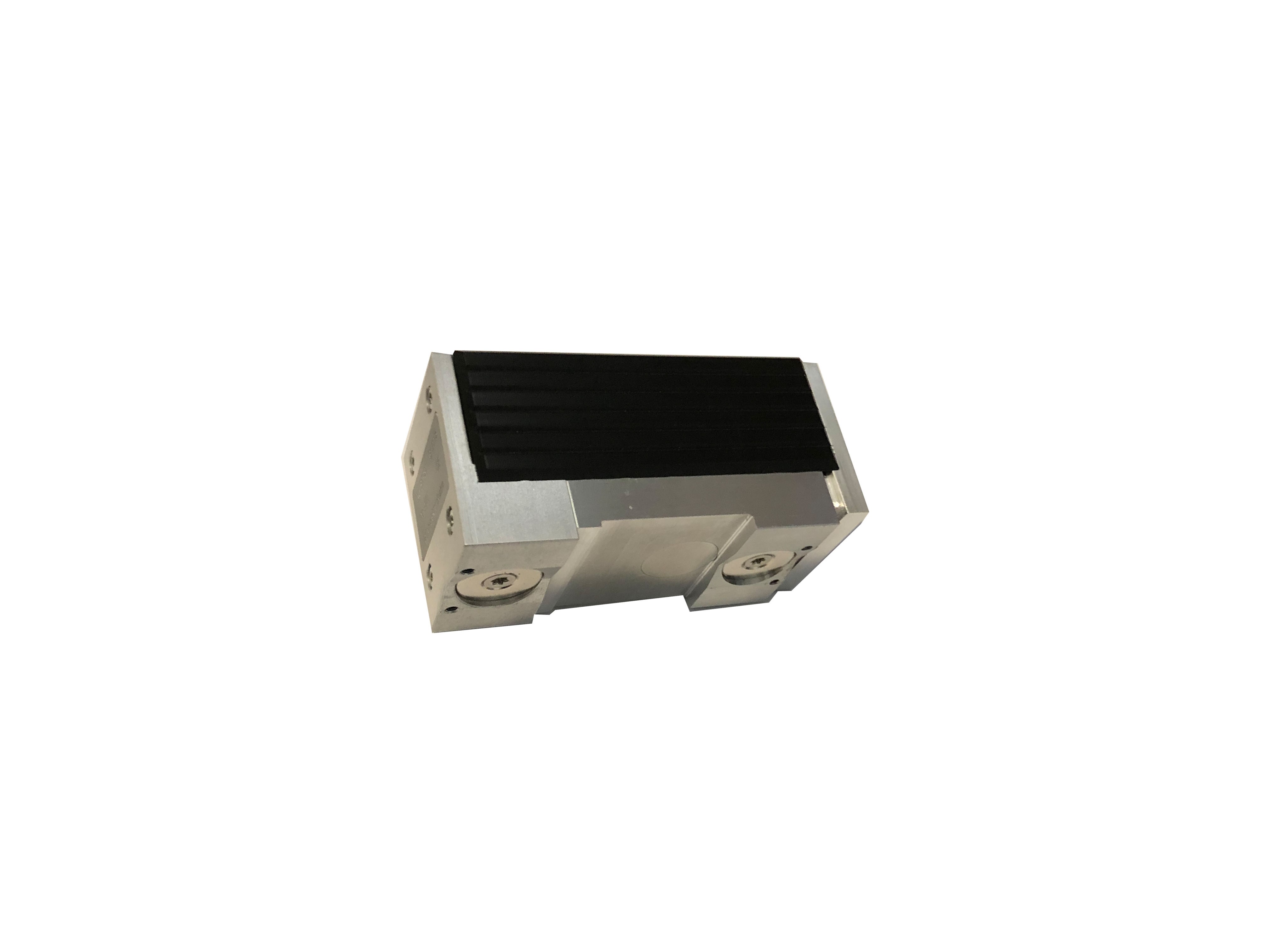

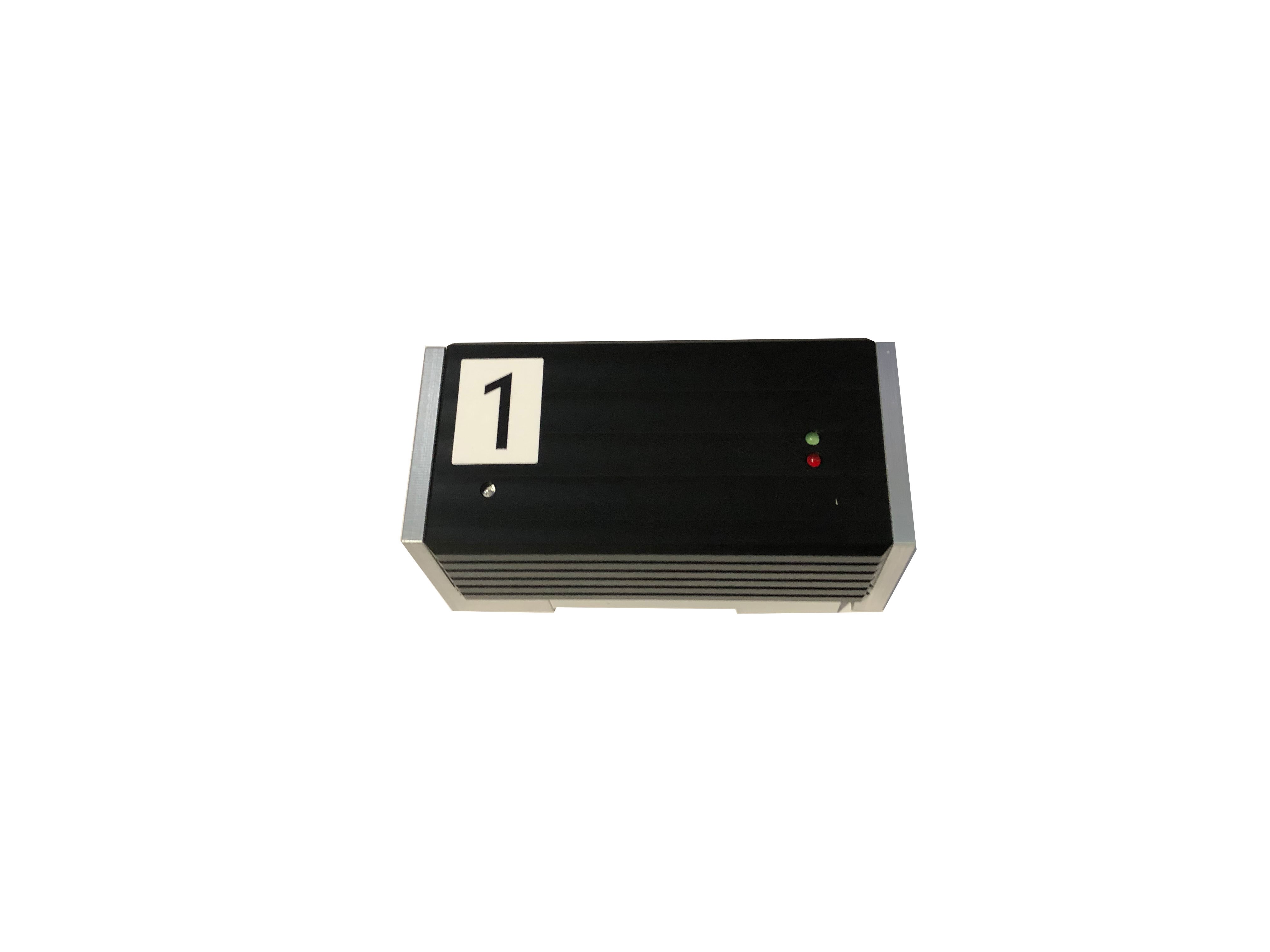

RS-measuring amplifier BTRS1 |
The RS measuring amplifier is placed on the machine tie bar and pressed onto the tie bar surface by means of 2 magnets. When the machine is closed, the resulting strain (change in length) of the tie bar is measured by the built-in strain gauge sensor and the strain measurements are sent to the netbook via the integrated radio module of the RS measuring amplifier. The RS amplifier has a built-in lithium battery with large capacity and charging electronics. |
Application |
Measuring the strain of tie bars and calculating the locking force of die casting machines and injection moulding machines. |
Delivery time |
on request |
Price |
on request |
Subject to technical modifications.
Subject to alterations in the technical description and prior sale.
