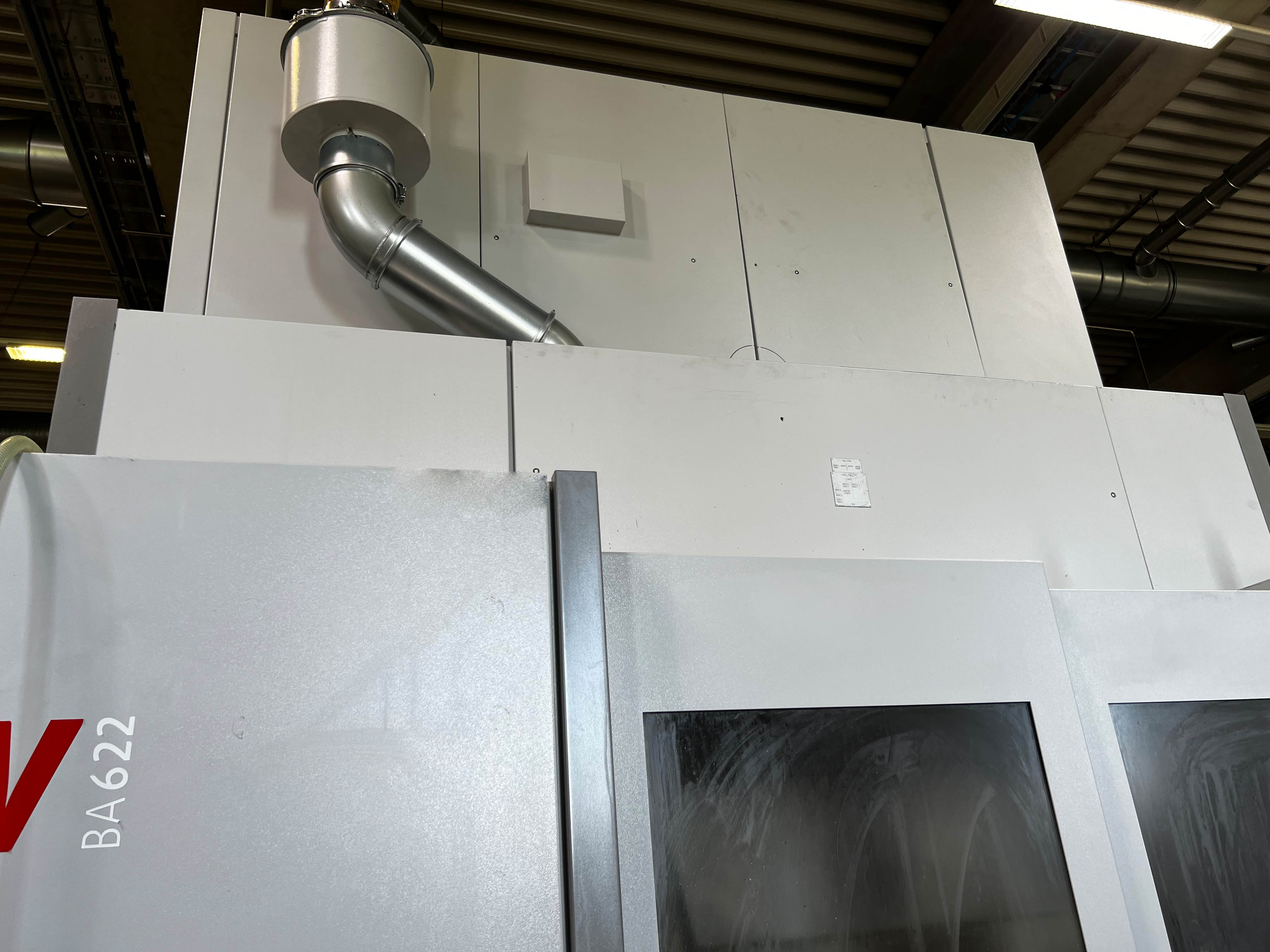

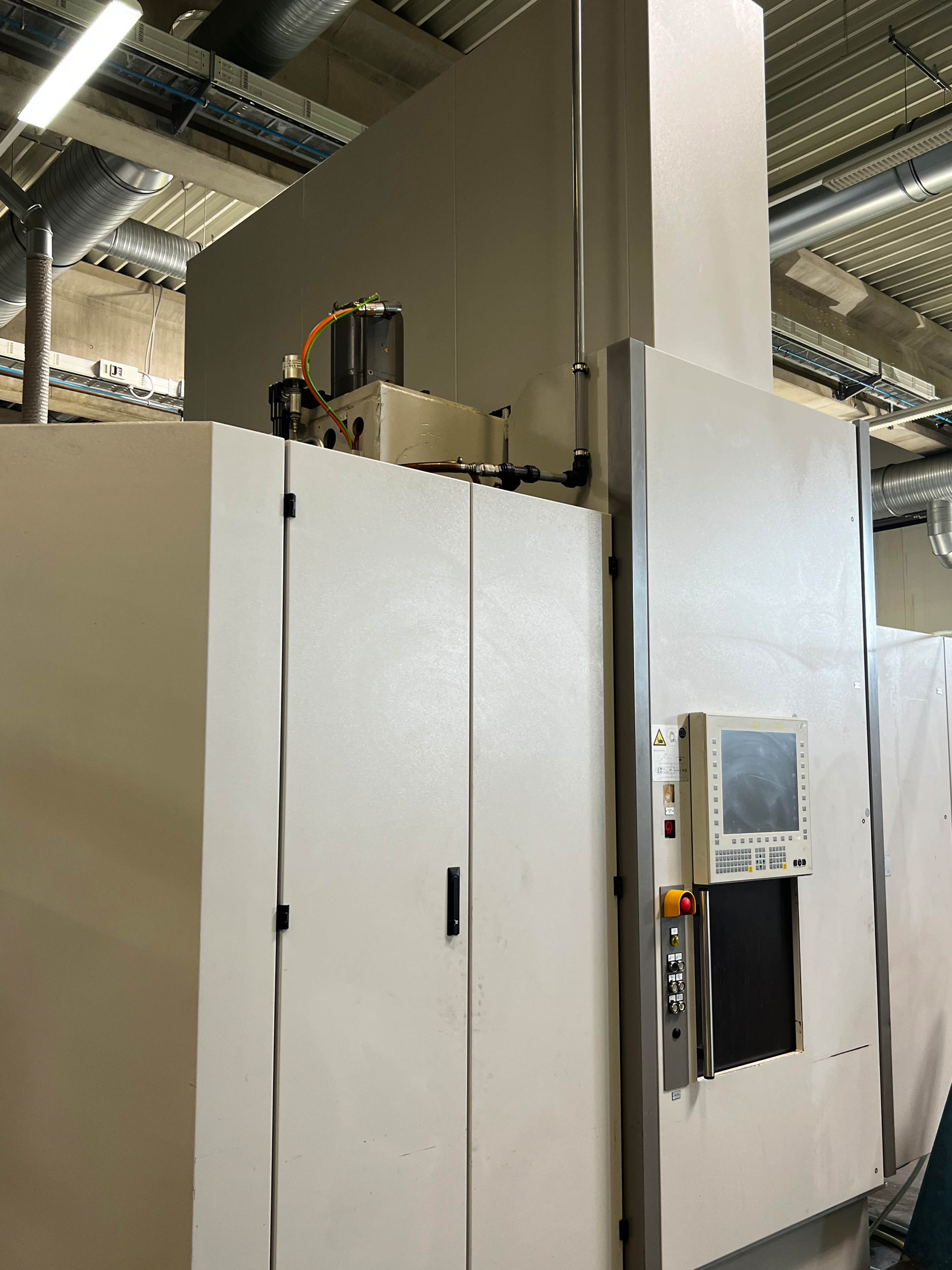

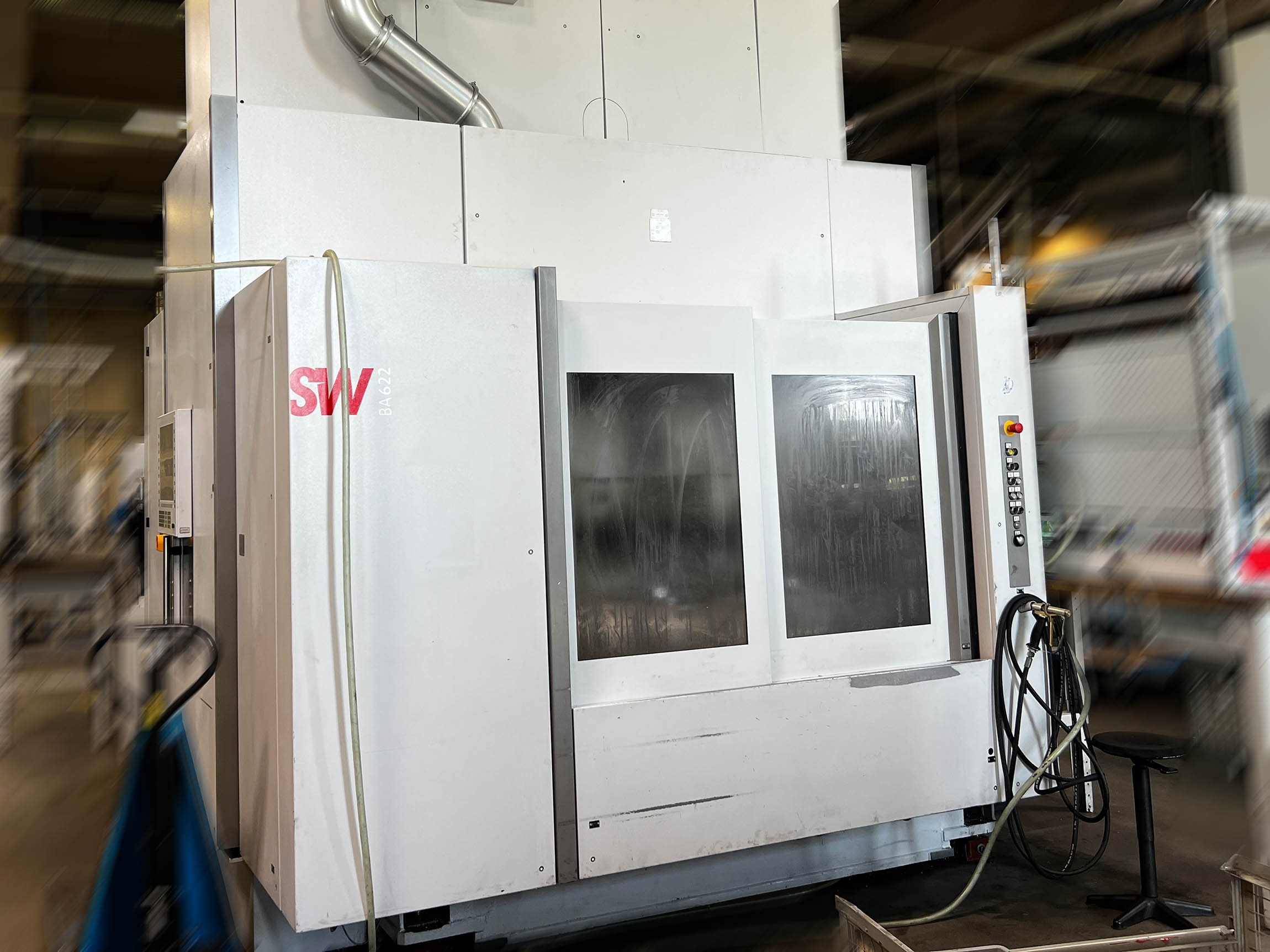

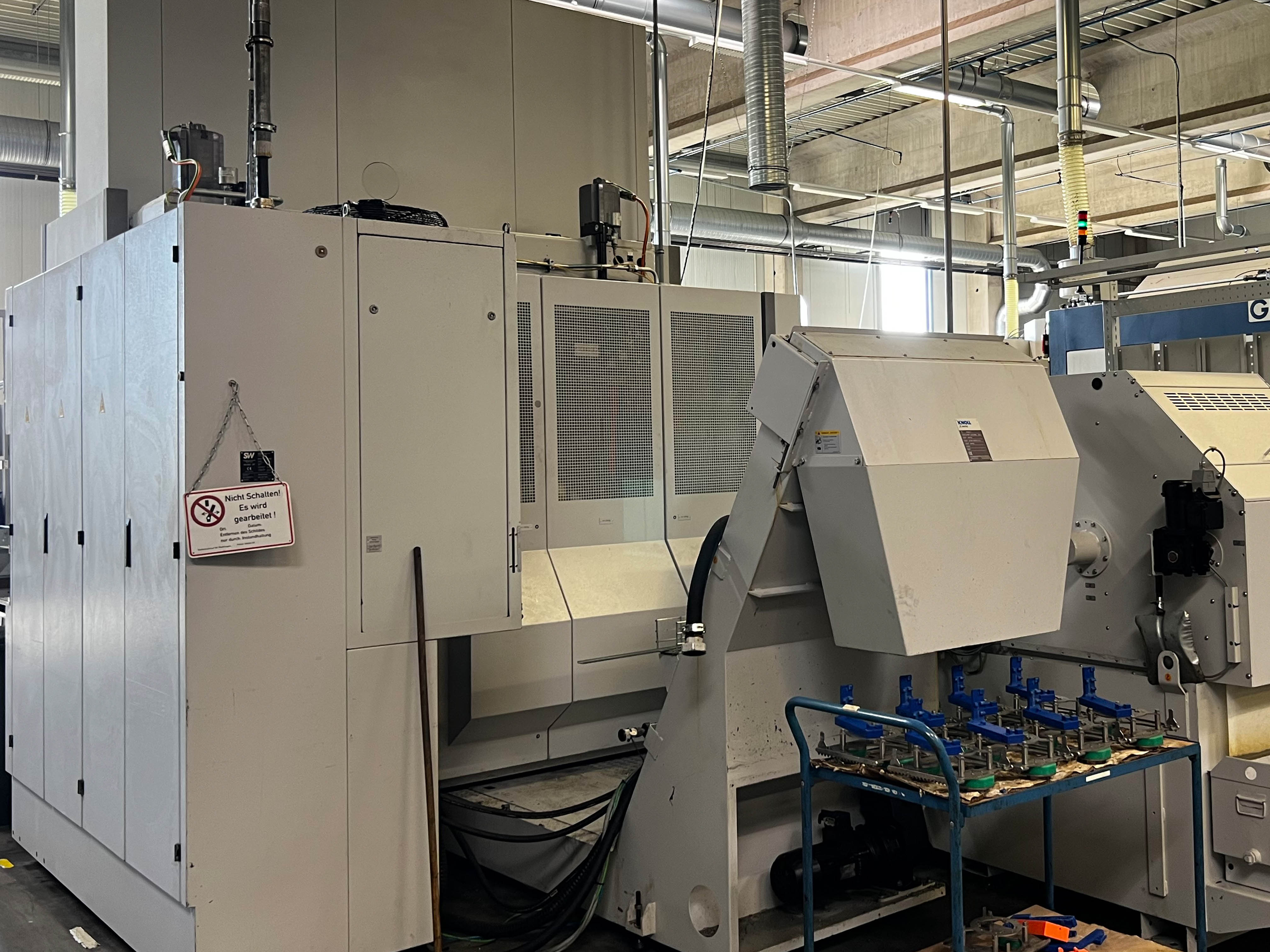

SW BA 622 - 2Z double-spindle machining center BA2402, used
details
The SW BA 622 is a horizontal, twin-spindle 5-axis machining centre (2Z with independent Z-axes) from Schwäbische Werkzeugmaschinen, designed for the high-precision and productive series production of complex workpieces.
The high drive power and HSK-A100 tool holders, the SW BA 622 twin-spindle 5-axis machining centre (Schwäbische Werkzeugmaschinen) is primarily capable of machining metallic materials in series production.
These include:
- Aluminium and light metal alloys
- Cast iron (grey cast iron / ductile cast iron)
- Steel and steel alloys
- Titanium and special alloys (depending on the specified spindle dynamics)
| Machining center | Horizontal |
| Manufacturer | SW |
| Model | BA 622 - 2Z |
| Year of manufacture | 2015 |
| working hours | h |
Technical data

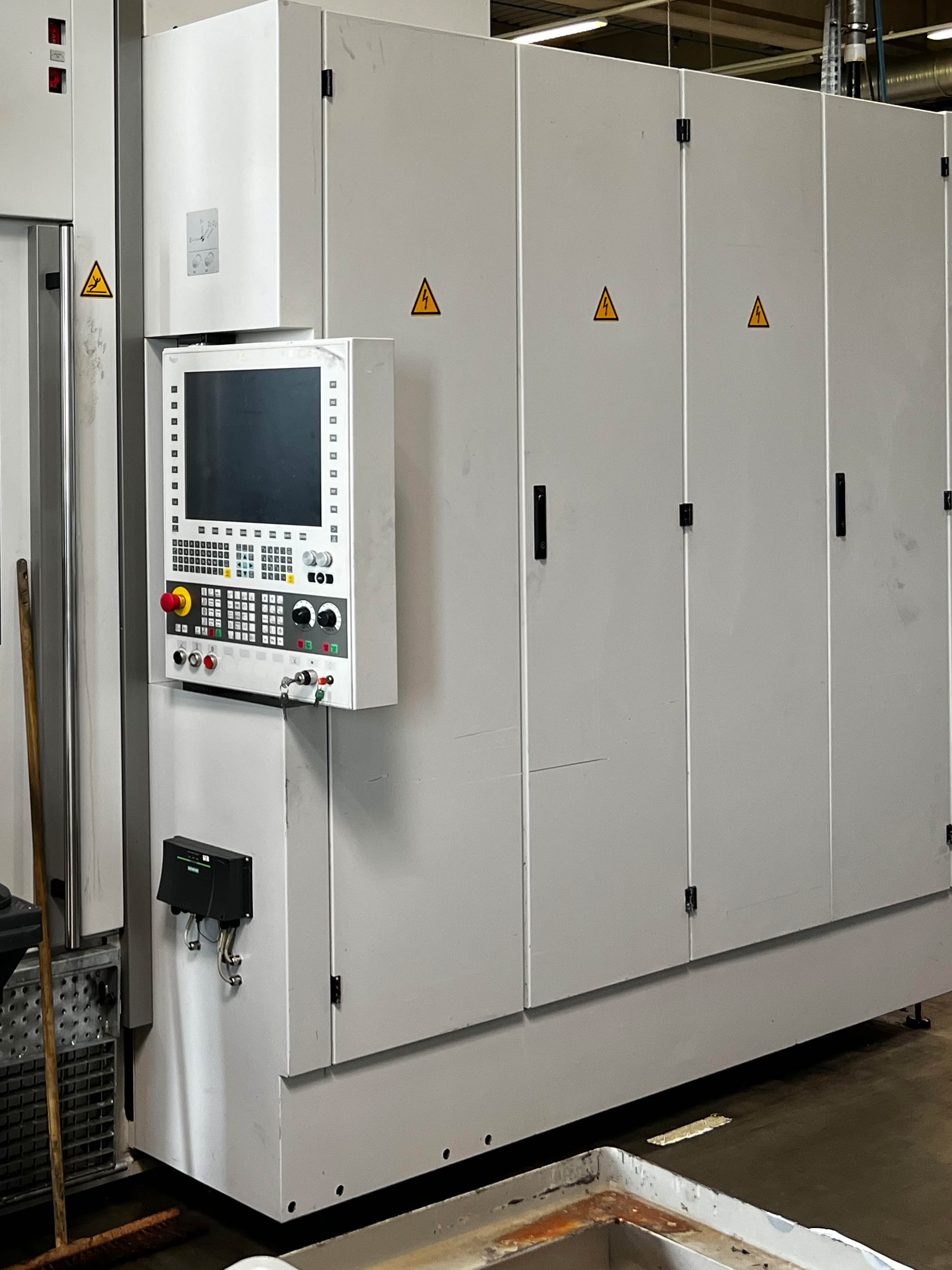

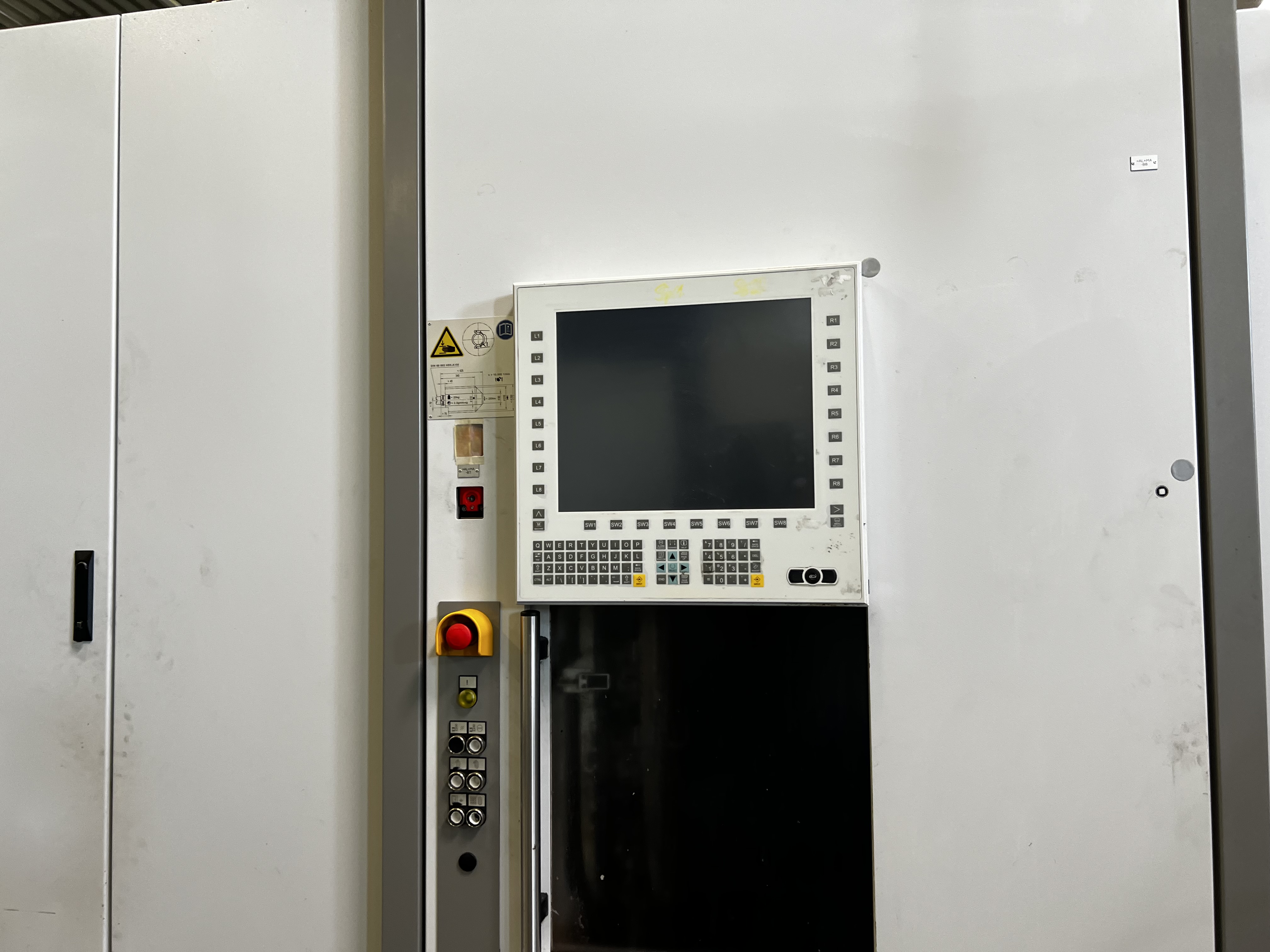

- Control system: Siemens 840 D SL
- Version with 2 independent Z-axes
- Spindle HSK 100 with 375 Nm (2x)
- Working range (travel distances)
- X-axis: 600 mm
- Y-axis: 600 mm
- Z-axis: 600 mm (two independent Z-spindles)
- Spindle centre distance: 600 m
- Control system: Siemens Sinumerik 840D sl CNC control
Main spindles (2)
- Speed range: 1 – 10,000 min⁻¹ (optionally up to 12,500 or 17,500 min⁻¹)
- Drive power: approx. 28 kW to 30 kW (at 25% duty cycle)
- Torque: approx. 340 Nm to 375 Nm (at 25% duty cycle)
- Tool holder: HSK-A100 (optionally HSK-A63 / HSK-A80)
- NC rotary axes / 5-axis design
- Rotary axes: 2 directly driven NC tables (integrated pendulum machining / shared cross slide)
- Measuring system: Direct, absolute angular measurement
- Max. fixture size: approx. Ø 600 x 225 mm
- Max. weight per fixture: 120 kg
- Peak torque, rotary axis: 490 Nm
| Delivery time | immediately |
| Price | on request |
