Feintool fine blanking press HFA 6300 CNC IA2561, used
details
fine blanking press
| Manufacturer | Feintool |
| Model | HFA 6300 |
| Year of Manufacture | 1987 |

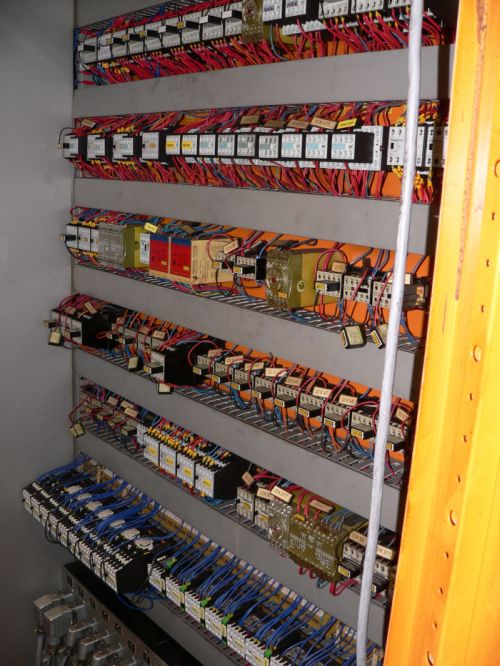

| PLC controls: | PILZ |
| Feeder controls: | Autotron |
| Front end: | Cybelec CNC 7200 PD |
| Comments | part refurbished 2007 |
Technical data
Main ram
| total force | 630 kN |
| stroke min. | 30 mm |
| stroke | 150 mm |
| cutting velocity min. | 3 mm/s |
| cutting velocity max. | 50 mm/s |
| closeing velocity | 120 mm/s |
| returning velocity | 135 mm/s |
V-ring
| nominal force | 320 kN |
| stroke | 40 mm |
counter ram
| nominal force | 160 kN |
| stroke | 40 mm |
tool dimensions
| lower table - width | 910 mm |
| lower table - depth | 1350 mm |
| upper table - width | 900 mm |
| upper table - depth | 900 mm |
| daylight max. | 410 mm |
feeders
| feeder: type | roll feeder |
| nominal force | 6000 kN |
| sheet width max | 450 mm |
| sheet thickness max | 16 mm |
| feeding step min. | 1 mm |
| feeding step max. | 999.9 mm |
| sheet length min | 3170 mm |
electrical specifications
| total power consumption | 102 kW |
| mains voltagee | 380 V |
| mains frequency | 50 Hz |
Accessories
- autom. tool clamping device
- closed cabin
- waste cutter
- RAZIOl band lubrication system (minium lubrication)
- additional hydraulic system for 4 additional hydraulic forces (80 bars)
| Delivery time | immediately |
| Price | on request |
