Pomac 1 Axe AC servo driven spray unit 509 FS1819, used
details
| Spraying unit | |
| Manufacturer | Pomac |
| Model | 509 |
| Year of Manufacture | 2024 |
| Control system | Siemens ET200SP TIA portal Profinet |
| Comments | 1 x Manifold with 2 x 10 B-SA5802 nozzle with outside mixing. |
Drive motor
- Vertical Schneider Electric BMH1001 + brake gearbox Motovario SW075
- Motors with steckers IP67
Electrical on machine
- Connection box: standard 509 2 channel
- Limit switches: 2x standard pnp 8 mm.
- Pneumatic control plate with filter liquid valve and regulators

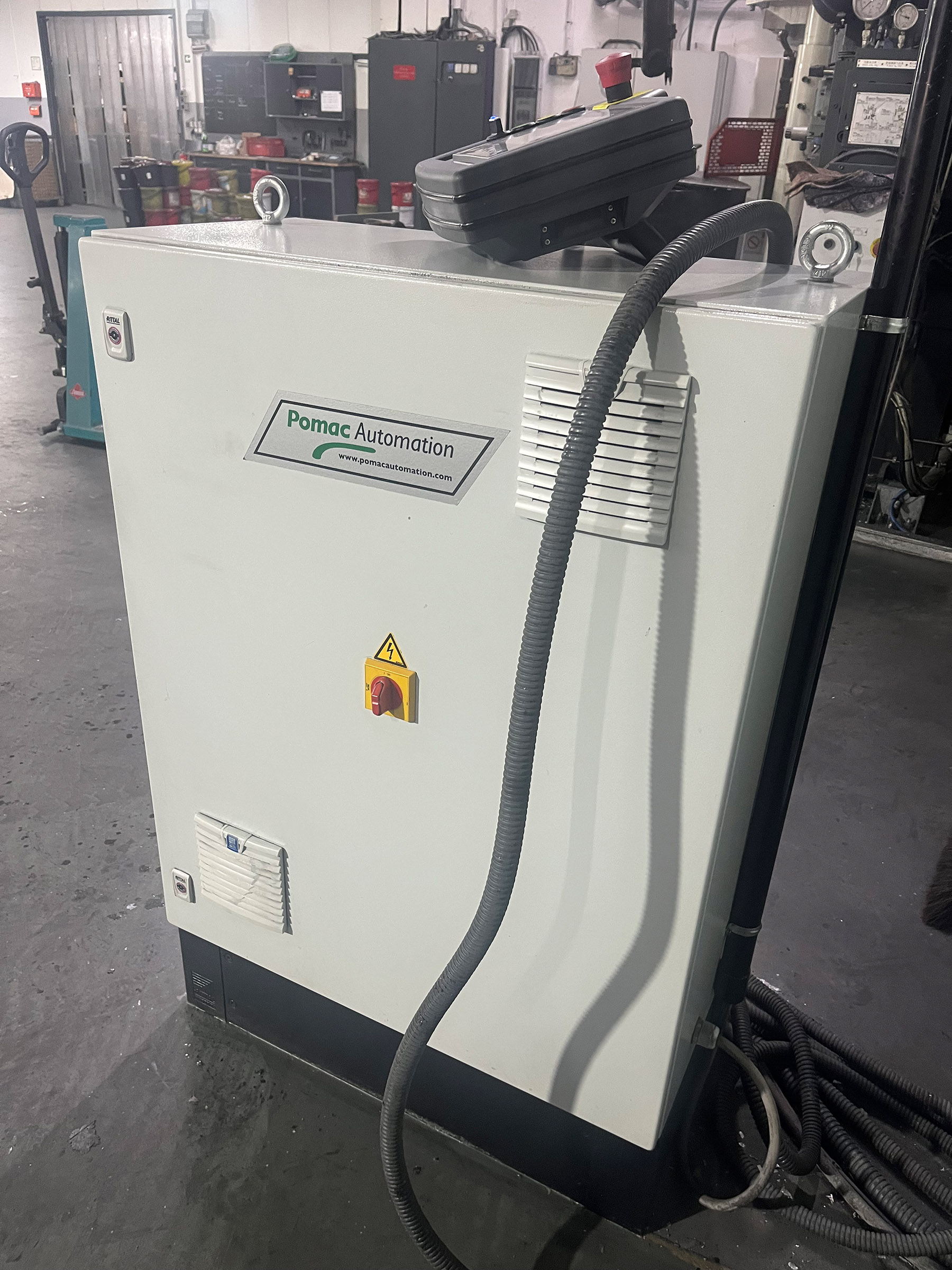

Electrical cabinet
- Rittal floor standing panel 1000x800x400 with 100 mm
- sockel Control Siemens ET200SP TIA portal Profinet
- Servo control Schneider Electric LXM32MD18N4

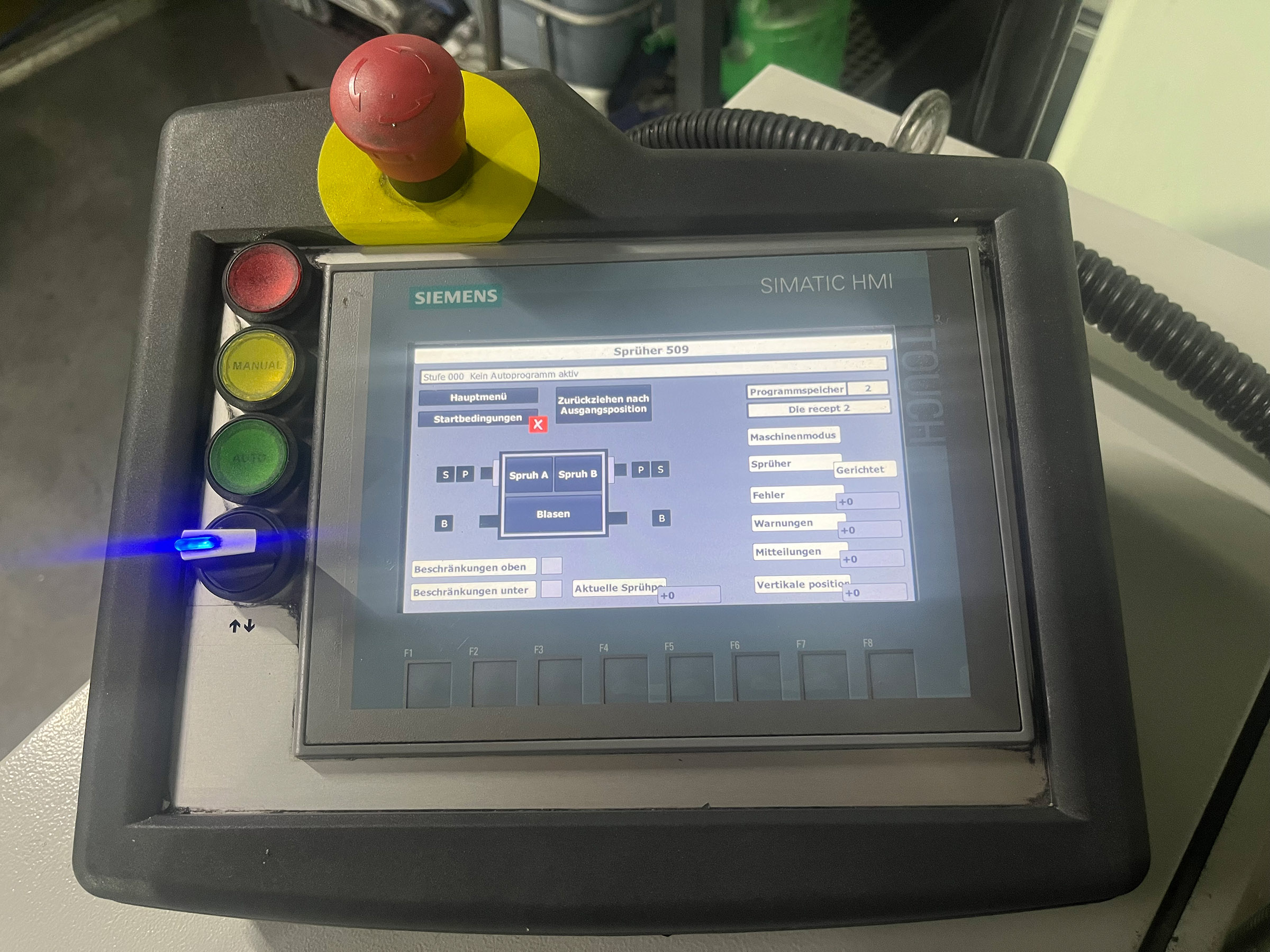

- Portable operator panel with KTP700 basic touchpanel
- Die memory: 30 dies
- Programm steps max. 310 to be programmed in grafic and text
- interface to DCM 6 inputs, 5 outputs
- Cable length to machine 15 meter
- Cable length to oprator panel 12 meter
- Lenght interface cable 10 meter
| Delivery time | immediately |
| Price | on request |
